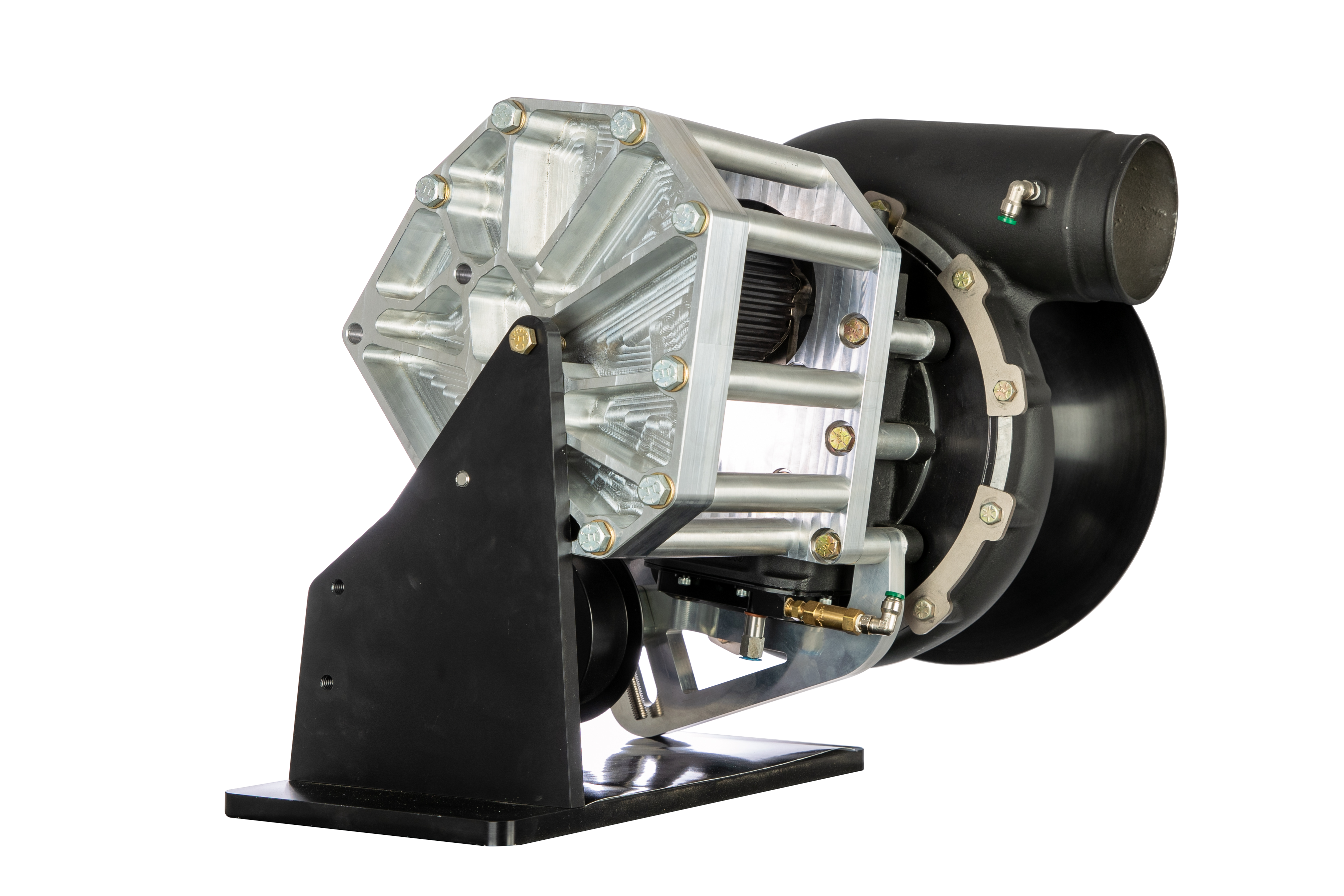

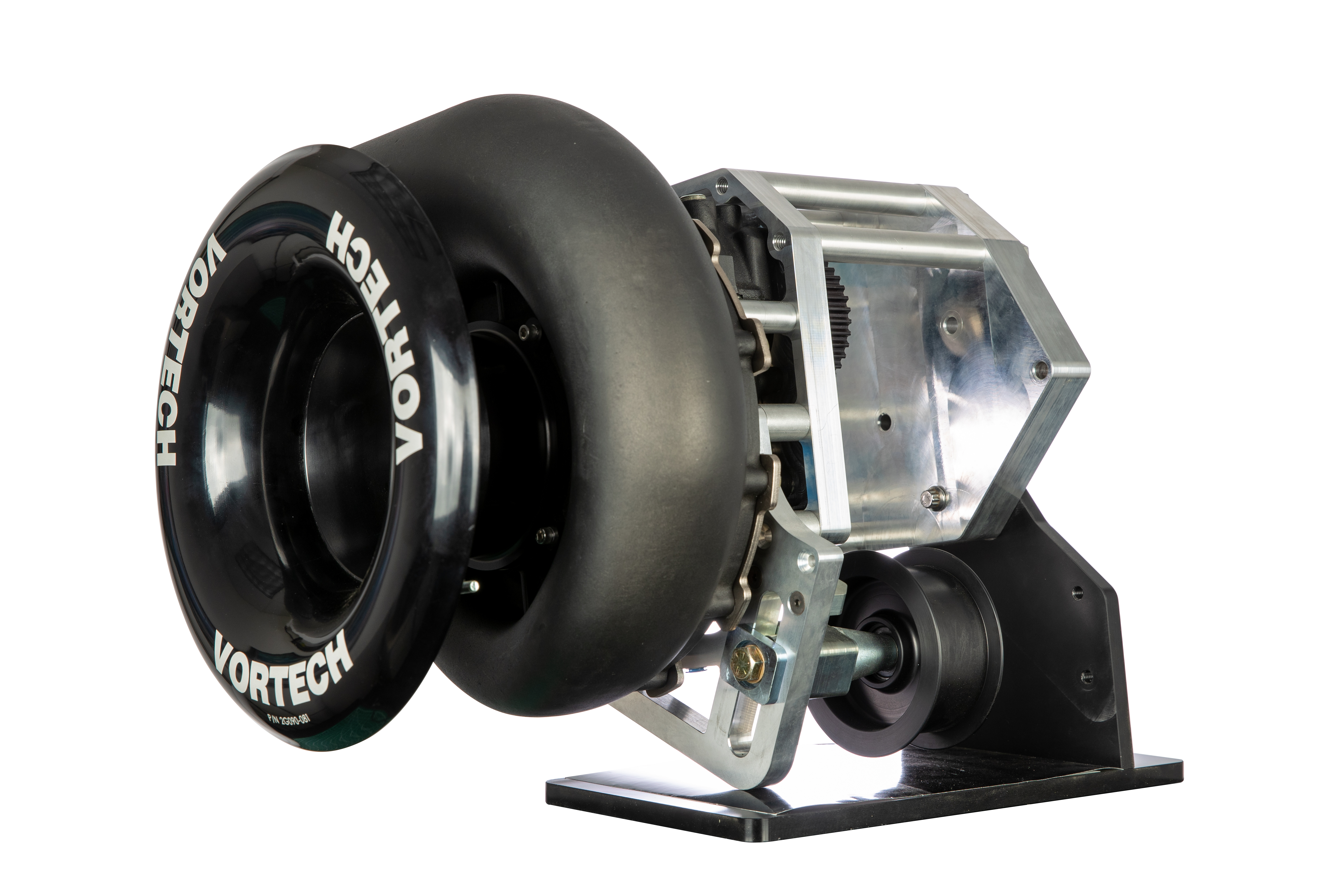

Vortech V-30 Chevy LS Engine Race Bracket Assembly

4GZ218-010



  • Vortech Superchargers continues the quest to get more power options to Chevy racers with a new Billet Mounting Bracket Assembly engineered to install the respected V-30 Centrifugal Supercharger onto Chevy LS engines. The V-30s have proven to be the most reliable, efficient and consistent supercharger even under the toughest racing conditions and is specifically designed for modified performance engines that crave extreme boost. Available for Chevy LS engines, the Vortech Superchargers V-30 Mounting Bracket Assembly give drag racers and auto enthusiasts the edge needed to dominate the competition. Kits range from 1500 – 2800 HP.

  • For those looking for Vortech V-30 efficiency and power in a side-slinger mounting configuration, look no further! The Vortech V-30 Chevy LS Engine Race Bracket Assembly is compatible with all Vortech V-30 Series Race Superchargers. The Billet aluminum twin-plate construction fits all LS based engines, and is both stylish and functional even at the highest levels of competition!

  • Chevy LS Engine Billet Mounting Bracket Assembly - Features Include: -Billet Aluminum Twin-Plate construction
  • -Compatible With Most Aftermarket Blocks and Cylinder Heads
  • -Dual-Bearing Billet Aluminum Idler with Flanges, Hard Anodized
  • -Drive Belt Idler Adjustment Screw, Arbor and Spacers
  • -Billet Anodized Water Port Assembly with -12AN Fittings
  • -Billet Aluminum, Hard Anodized, 50mm Cog drive
  • -High Grade Mounting Hardware

  • Supercharger Options Include
  • Vortech V-30 94A Supercharger - 1,400+ HP
  • Vortech V-30 94C Supercharger - 1,500+ HP
  • Vortech V-30 112A Supercharger - 2,000+ HP
  • Vortech V-30 123A Supercharger - 2,800+ HP

  • $9,126.99
    Included Supercharger Compressor Stage
    -
    +
    $9,126.99
    Add to wishlist

    Product Summary

    Vortech Superchargers continues the quest to get more power options to Chevy racers with a new Billet Mounting Bracket Assembly engineered to install the respected V-30 Centrifugal Supercharger onto Chevy LS engines. The V-30s have proven to be the most reliable, efficient and consistent supercharger even under the toughest racing conditions and is specifically designed for modified performance engines that crave extreme boost. Available for Chevy LS engines, the Vortech Superchargers V-30 Mounting Bracket Assembly give drag racers and auto enthusiasts the edge needed to dominate the competition. Kits range from 1400 – 2800 HP.

    For those looking for Vortech V-30 efficiency and power in a side-slinger mounting configuration, look no further! The Vortech V-30 Chevy LS Engine Race Bracket Assembly is compatible with all Vortech V-30 Series Race Superchargers. The Billet aluminum twin-plate construction fits all LS-Based engines, and is both stylish and functional even at the highest levels of competition!

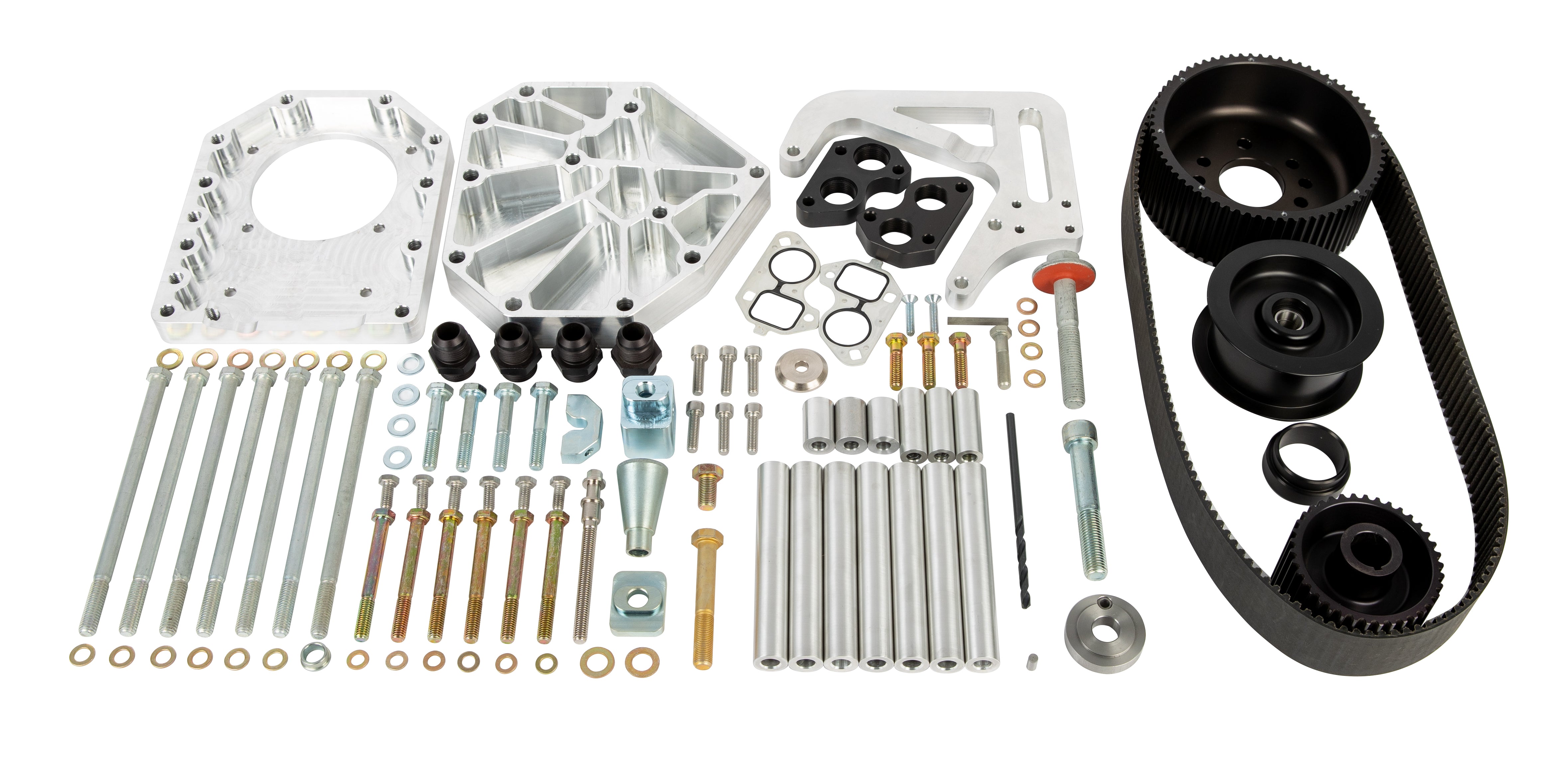

    LS Engine Billet Mounting Bracket Assembly - Features Include:

    -Billet Aluminum Twin-Plate Construction

    -Compatible With Most Aftermarket Blocks and Cylinder Heads

    -Dual-Bearing Billet Aluminum Idler with Flanges, Hard Anodized

    -Drive Belt Idler Adjustment Screw, Arbor and Spacers

    -Billet Anodized Water Port Assembly with -12AN Fittings

    -Billet Aluminum, Hard Anodized, 50mm Cog drive

    -High Grade Mounting Hardware

    .
