2003-2006 Nissan 350Z/ Infiniti G35 Tuner Kits

4NZ218-110L

$4,471.99
Rev-Up Engine
Head Unit
Finish
-
+
$4,471.99
Contact Us Today
Add to wishlist

Product Details

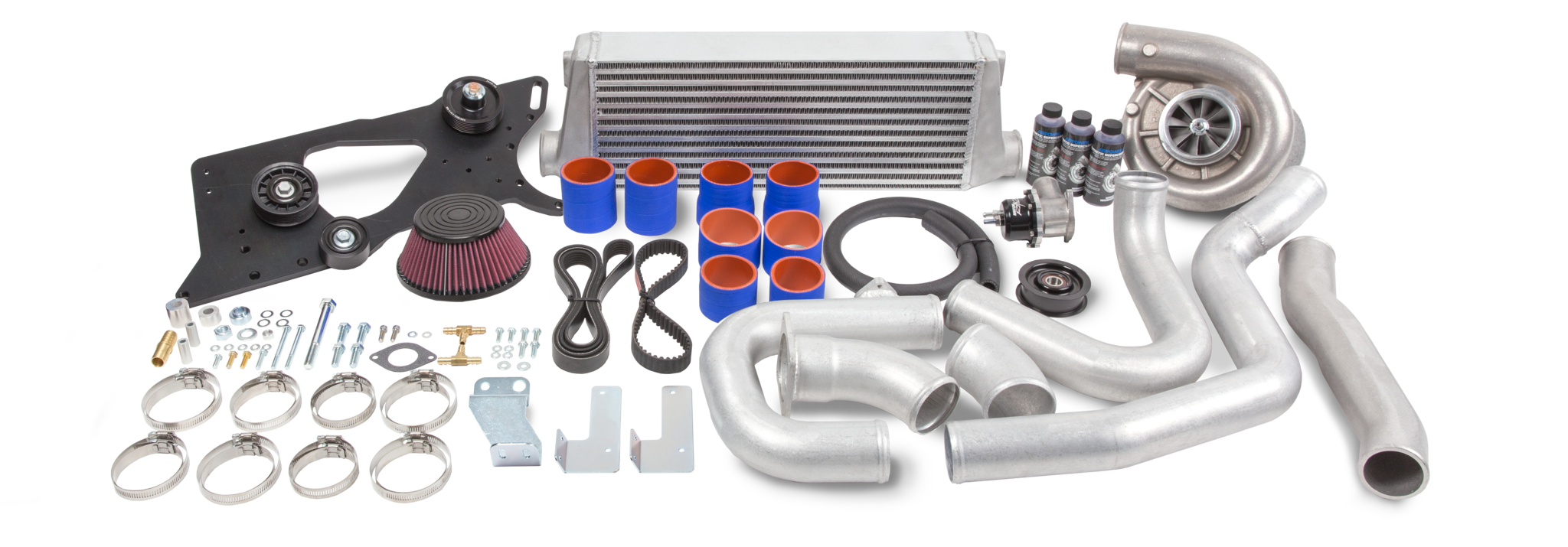

Bolt on a Supercharger Tuner Kit from Vortech for your 350Z or G35 and significantly increase the performance of your 350Z or G35.

The 350Z system uses Vortech's V-3 SCi supercharger. Continued development in Vortech's Lab resulted in the V-3 SCi. The "i" stands for improved and with its new patented oil control system and state of the art centrifugal compressor stage this V-3 literally blows away the competition. Industry leading 75% adiabatic efficiency [SAE J1723 standard] means less heat is being generated, reduced drive power and more net power is produced. Less heat also means better durability, easier on the engine than any turbo installation.

Higher output compressors also available with the Tuner Kits for the 350Z/G35. Depending on your intended output level, Vortech has an efficient Supercharger that can get you there.

Vortech supercharger systems are a great value. Dollar for dollar, Vortech systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage usually increases.

Vortech's 350Z Supercharger Systems are available as either a complete, fully calibrated bolt-on system, or as a Tuner Kit for custom installations at over 500 HP. And with Vortech's many upgrade solutions, there is always more power when you are ready.

Quality Features:

  • Vortech gear driven supercharger with SQ technology provides nearly silent operation and unmatched reliability
  • Technologically advanced, high-efficiency impeller and housing design developed in Vortech's supercharger test cell
  • Integrated charge cooler configuration allows for higher horsepower gains
  • Discharge duct connections utilize heat resistant silicon sleeves and premium quality stainless steel clamps
  • Reusable air filter features a high-flow design
  • Billet aluminum mounting bracket for "factory-type" appearance and rigidity
  • Maxflow Race Bypass Valve provides surge-free compressor operation
  • Supercharger drive system includes all necessary belts and pulleys

Installation

INSTALLATION MANUAL

Hardware kits: 4NZ100-001 for standard engine; 4NZ100-002 for Rev-Up. These kits include spare/replacement bolts and other hardware for supercharger mounting.

Tuner Kits and Supercharger Options

Tuner kits are the same as complete systems except without the fuel system upgrades or ECM reprogramming. This allows for custom tuning and fuel modifications that the custom tuner or racer may prefer.Vortech has supercharger options for various types of racing or boost level. For continued use, such as road racing, the V-2 series superchargers share the engine's oiling system. This approach is more suitable for continued boost conditions and allows for the addition of an oil cooler or filter. Call the Vortech Tech Line for complete information on the many upgrades and options available.

V-2 Ti Tuner Kits Important Note

Tuner Kits with the high flowing V-2 Ti supercharger head unit DO NOT include a charge cooler, as the standard 350Z/G35 charge cooler is not capable of supporting the significant airflow capability of the V-2 Ti compressor. Customers looking to utilize this system will need to source their own charge cooler capable of flowing sufficient cfm to support the V-2 Ti supercharger.

CARB Compliance

Tuner Kits are NOT CARB legal, and are legal in California only for racing vehicles which may never be used upon a highway (off-road use only). Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S Law regarding motor vehicle emissions.
