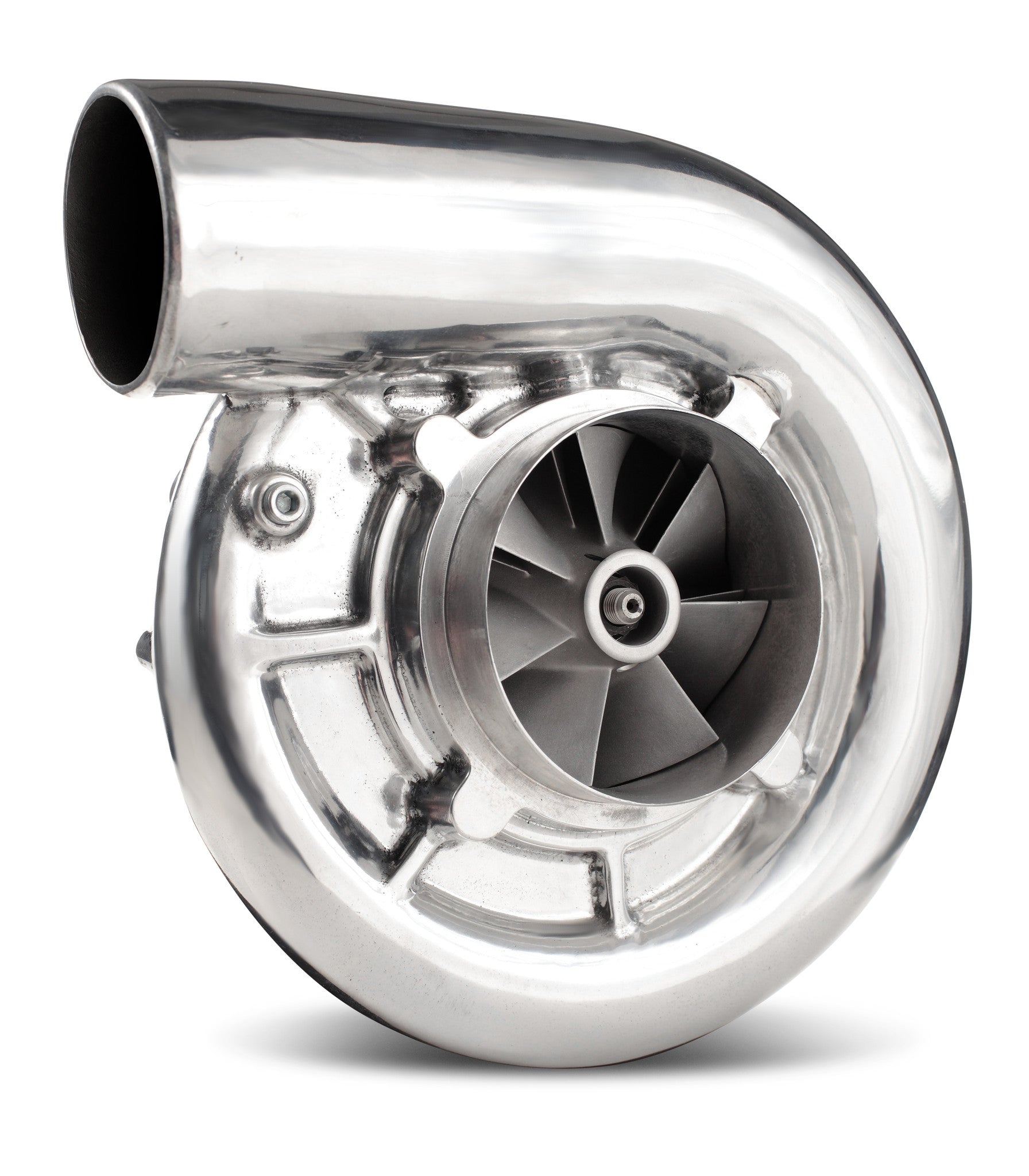

V-7 JT-Trim Supercharger Head Unit for up to 1,000 HP Applications

$4,433.99
SKU: 2A159-010
Rotation
Finish
NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA

Specifically designed for higher output on the modular Ford Mustang engines. Superior 75% peak efficiency. Ideal for the latest generation of improved breathing, high-power street and strip engines.

The V-7 Series combines the advanced technology and race-proven performance and fits most of our existing mounting bracketry. The V-7 is designed for vehicles with highly modified engines and extreme CFM/boost demands. All units feature our exclusive D-port volute for improved efficiency and require the use of a Vortech Racing Bypass Valve or larger to meet discharge flow demands. The heavy duty (H/D) configuration includes high speed, ceramic hybrid ball bearings, ideal for race applications, and is compatible with cog pulley/Gilmer style drive setups.

Performance Specs

Internal Step-Up Ratio: 3.45:1
Max Speed: 60,000 RPM
Max Boost: 27 PSI
Max Flow: 1,450 CFM
Max Power: 1,000 HP
Peak Efficiency: 75%

Dimensions

Discharge OD: 3.0"
Inlet OD: 4.0"
Discharge ID: 2.64"
Inducer Diameter: 3.486"
