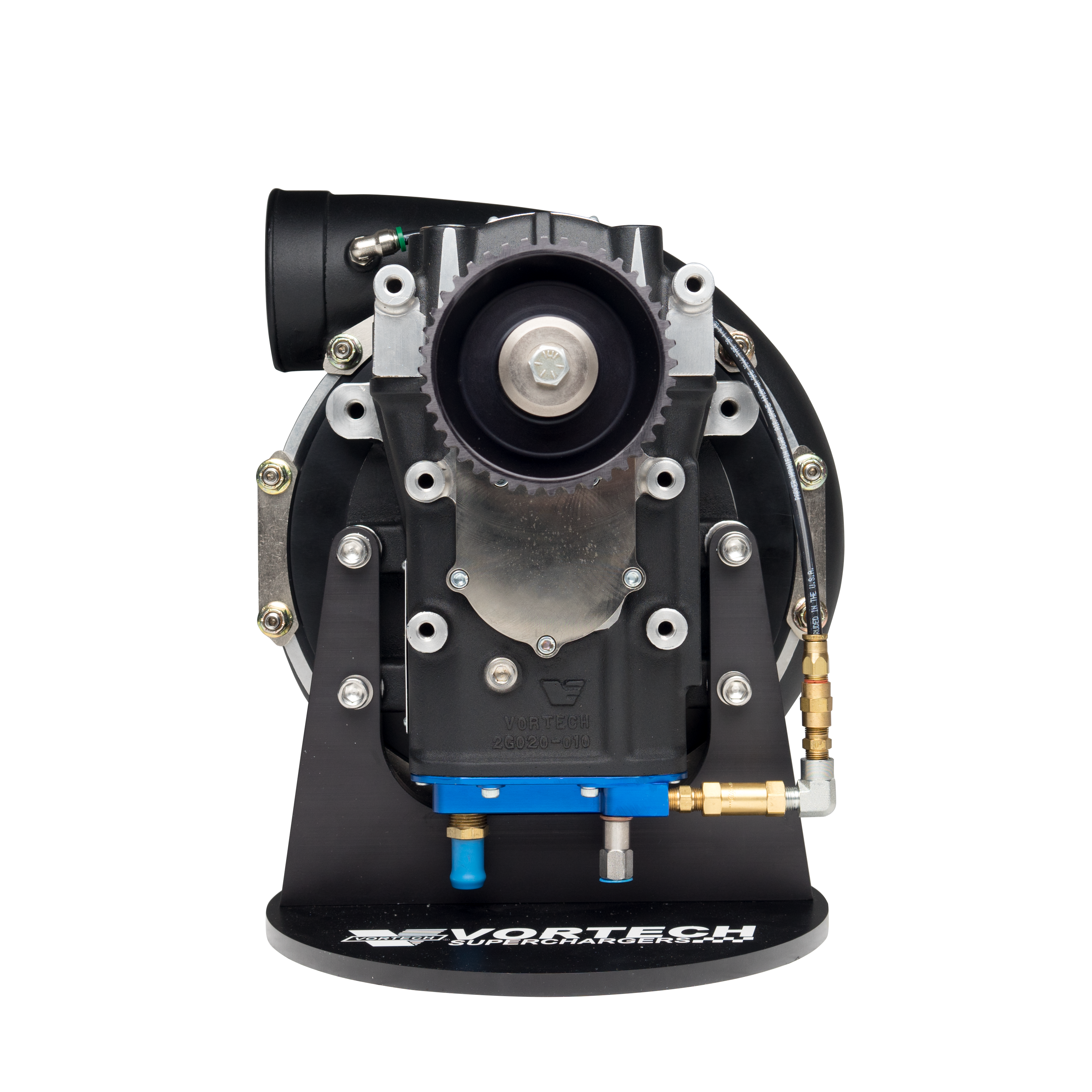

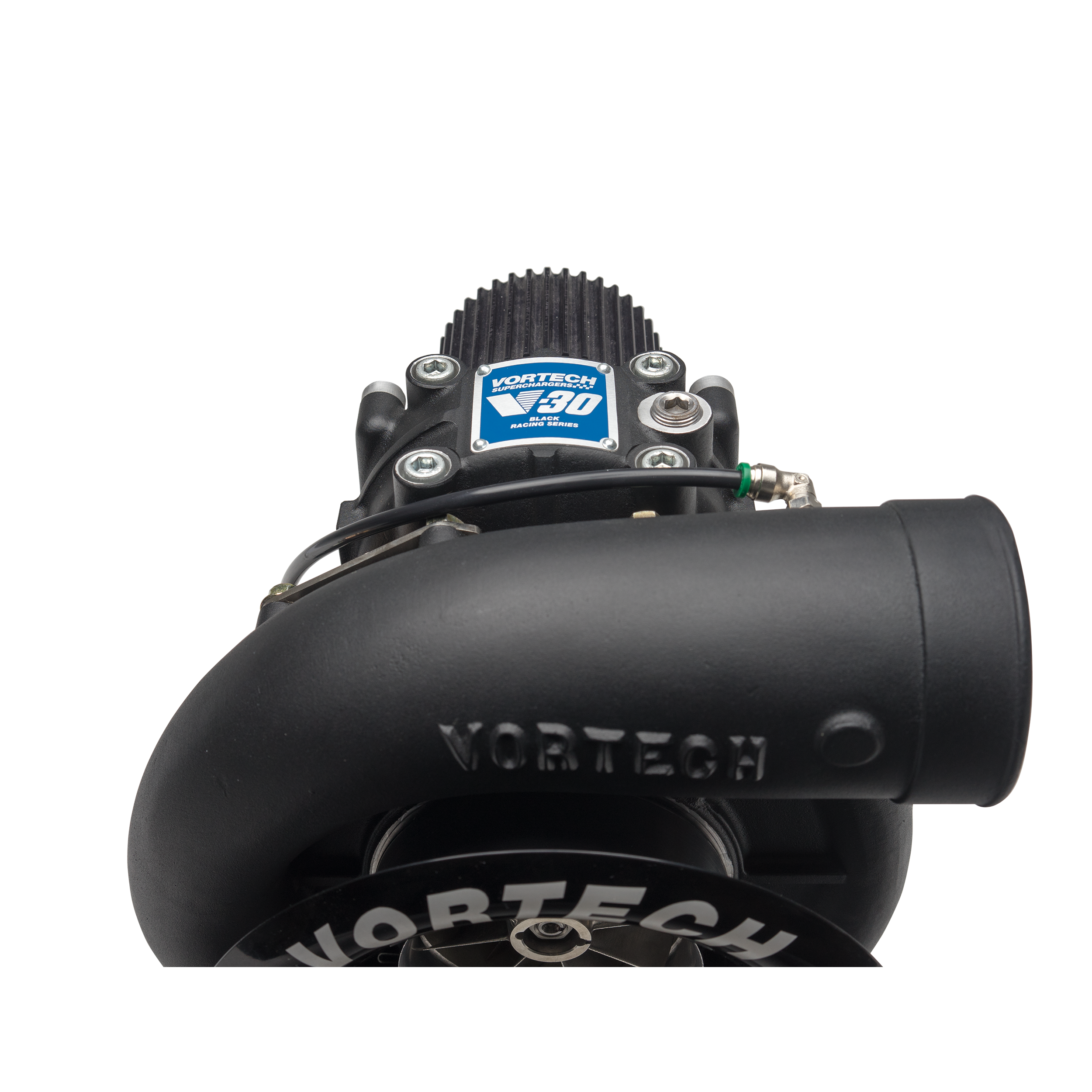

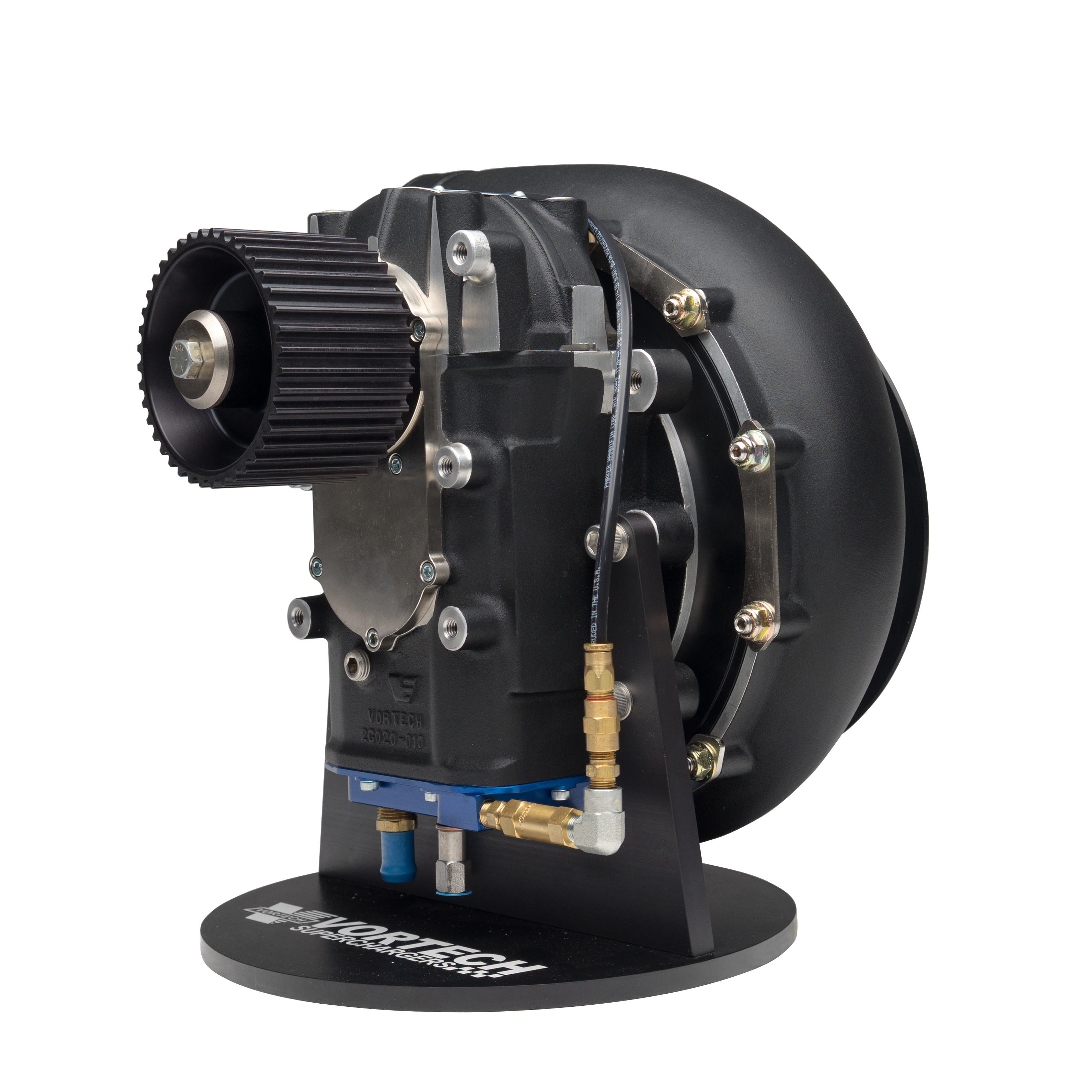

V-30 102A Supercharger Head Unit for up to 1,600+ HP Applications

The V-30 102A Supercharger is a new compressor, replacing the existing V-24 Xi-B, and features a plethora of cutting-edge technology, including its technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in our SAE-J1723-compliant supercharger test cell.

Built to address the needs of the over 1,000HP racer, the V-30 is a clean sheet design that incorporates many years of racing compressor knowledge. The patented design employs a unique impeller shaft support system that is robust enough to endure the speeds and accelerations associated with high horsepower drag racing and the durability to perform well in the offshore boat-racing world. The modular design allows fitment of a wide range of compressor stages. All V-30 series superchargers share a 4.21:1 internal step-up ratio and are engine oil lubricated or an auxiliary system can be fabricated. Like the V-1 family, the V-30 can have different compressor stages.
