V-3 H67B Supercharger Head Unit for up to 525 HP Applications

$3,231.99
SKU: 2F369-024
NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA

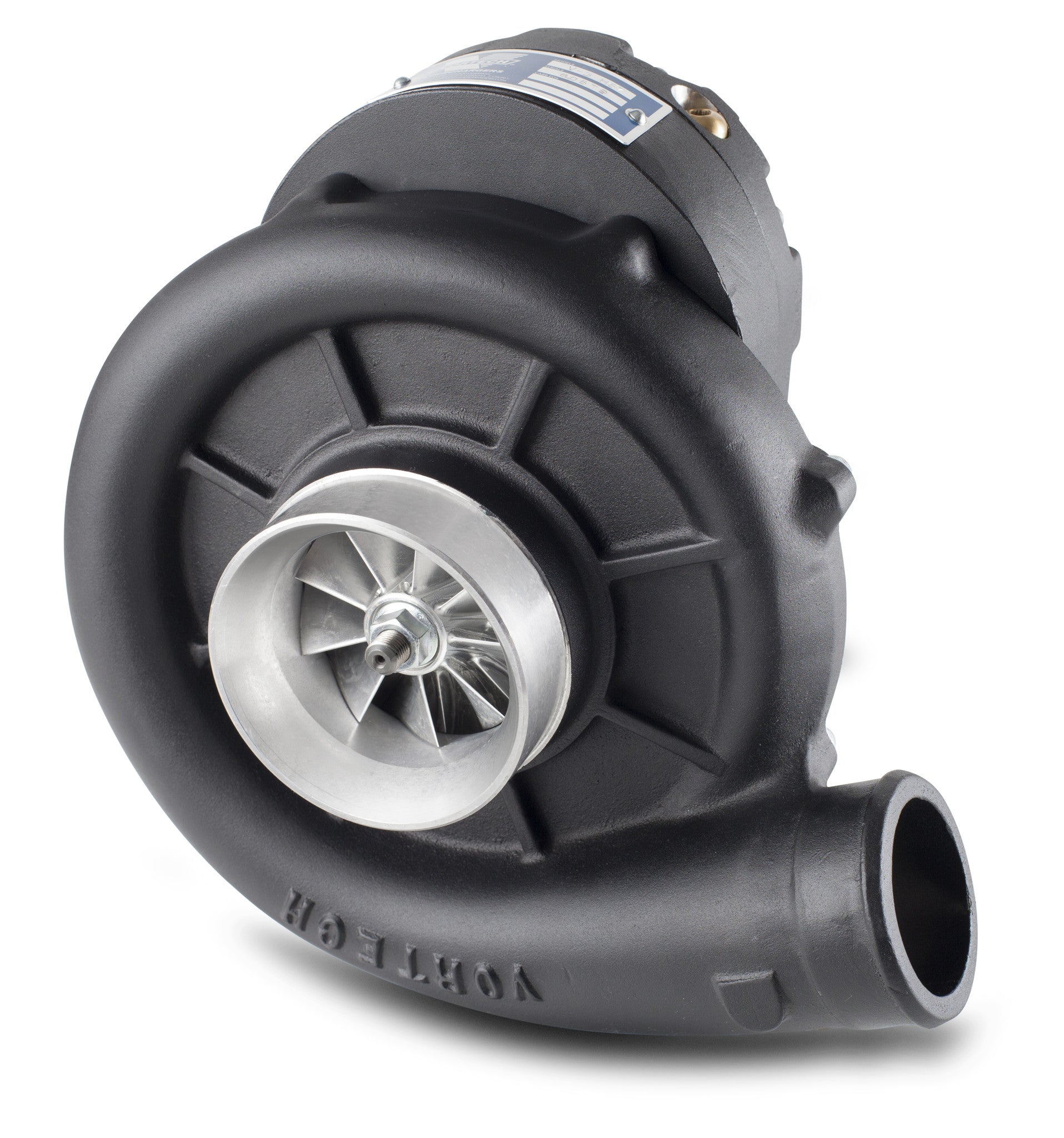

Gear-driven V-3 H67B centrifugal supercharger, designed specifically for the demands of high-revving, smaller displacement engines.

  • The V-3 features an internal oil reservoir. No connection between the oil pan and the compressor gear case is required. Includes a remote fluid drain hose (attached to supercharger) that allows for simple fluid changes without removing the supercharger from the vehicle.
  • Technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in our SAE-J1723-compliant supercharger test cell.

  • Performance Specs

    Internal Step-Up Ratio: 3.61:1
    Max Speed: 52,000 RPM
    Max Boost: 14 PSI
    Max Flow: 750 CFM
    Max Power: 525 HP
    Peak Efficiency: 71%

    Dimensions

    Discharge OD: 2.50"
    Inlet OD: 3.50"
    Inducer Diameter: 2.69"

      • View details
