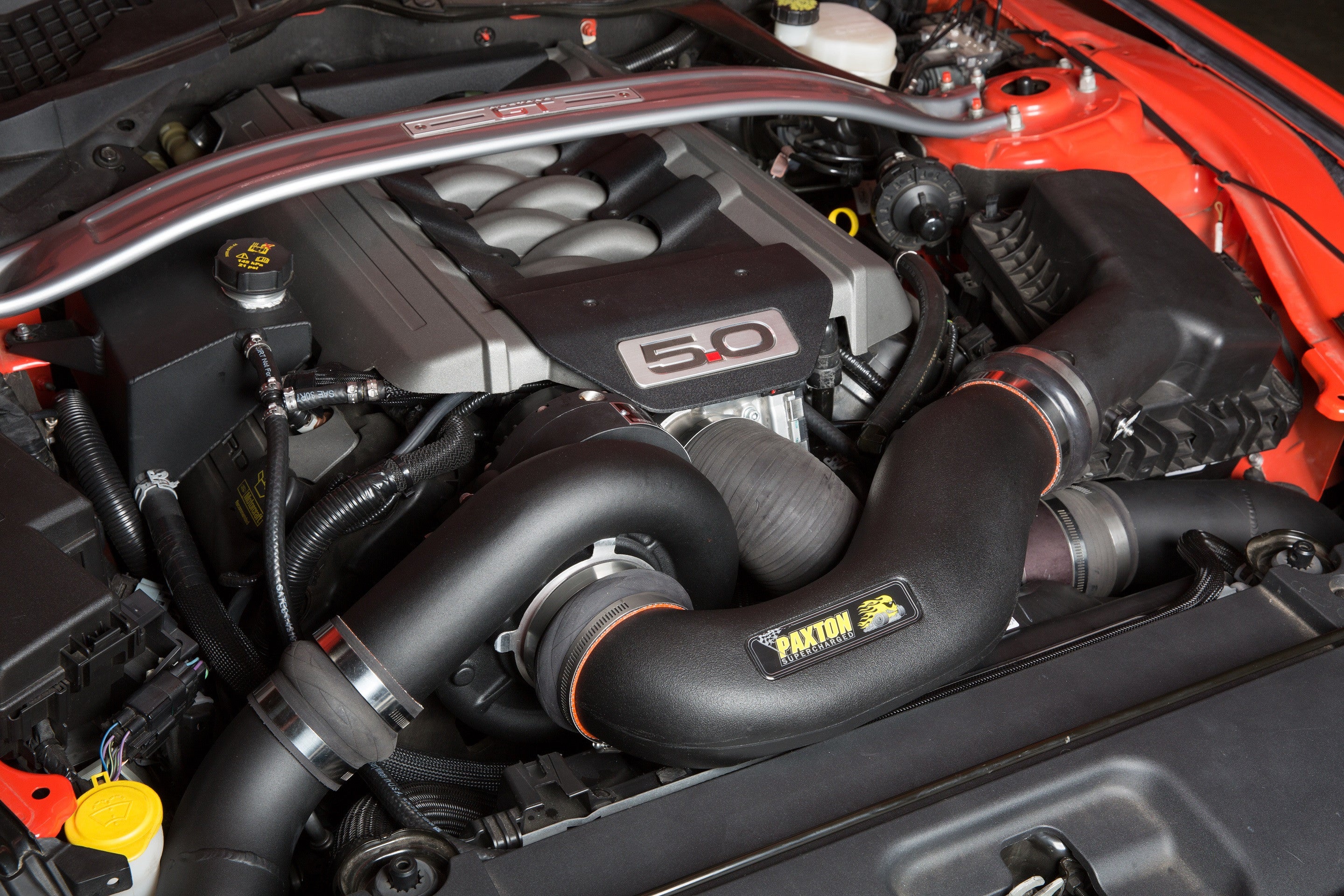

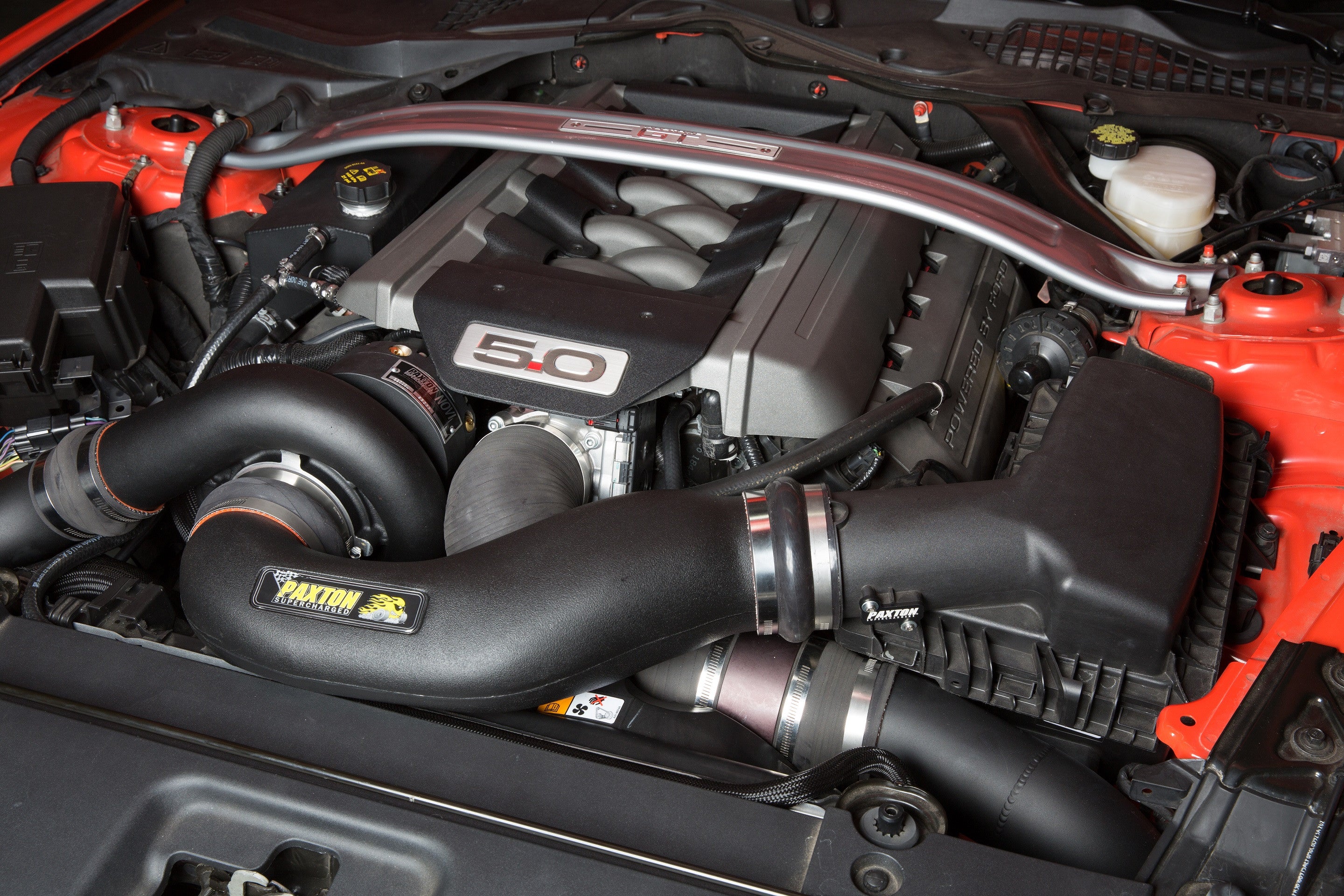

Paxton 2015-2016 Ford 5.0L Mustang GT Supercharger Systems

1001867SL

$6,269.99
Head Unit
Finish
Charge Cooler
-
+
$6,269.99
Add to wishlist

Complete System
  • 2015-2016 - Complete systems are available for manual transmission vehicles only. Tuning for vehicles with automatic transmission is currently under development.

  • 630HP Complete Systems, 50-State Smog Legal (CARB # Pending)

  • Complete, fully calibrated supercharging systems are available for the 2015-2016 5.0L Mustang GT, featuring the NOVI 2200SL centrifugal supercharger with air-to-air charge cooler.

  • The complete system will boost your stock 2015-2016 GT to 630 HP and 483 lb/ft torque with 7.5-8.5 PSI from the NOVI 2200SL supercharger at the factory redline.

  • The S550 Mustang system uses Paxton's NOVI 2200SL supercharger. Continued development in our development lab resulted in the NOVI 2200SL. With its patented oil control system and state of the art centrifugal compressor stage this NOVI 2200SL literally blows away the competition. Industry leading 78% adiabatic efficiency [SAE J1723 standard] means less heat is being generated, drive power is reduced and more net power is produced. Less heat also means better durability. Also, Paxton's supercharger systems weigh less than half of the low-tech competing brands.

  • Superior Technology
  • Centrifugal superchargers easily make more pressure and flow than a roots type blower and are much more efficient. Read our Roots vs Centrifugal comparison to see the numbers.

  • Paxton supercharger systems are a great value. Dollar for dollar, Paxton systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage often increases rather than decreases.

  • Additional Kit Options
  • For higher-horsepower, custom-tuned installations we recommend a tuner kit, which does not include a fuel pump, fuel injectors or ECU programmer. This requires you or your installer to provide custom calibration and the required fuel components. The NOVI 2200SL supercharger included with the tuner kit is capable of up to 1,000HP on modified vehicles. Call Paxton or your local dealer for more information.

  • Available Supercharger Finishes
  • Multiple kit finishes available. For that fully integrated look, 5.0 Mustang systems are available in factory matching black finish. Satin and Polished units are also available.

  • Complete System Included Components and Features
  • - NOVI 2200SL compressor with 3.60" drive pulley
  • - Manifold boost pressure: 7.5-8.5 psig @ redline on stock engine
  • - Supplied SCT programmer re-flashes the ECM with a safe, custom Paxton calibration for 91-octane fuel.
  • - Fuel system upgrade includes fuel rail spacers and high flow replacement fuel injectors
  • Air inlet assembly includes:
  • - High-flow roto-molded ducting. Mates to OEM airbox and some aftermarket "CAI" MAF/inlet assemblies
  • - OEM replacement K&N panel filter
  • - Silicone sleeves and reducers
  • - Stainless steel clamps
  • - PCV and breather hose provisions
  • - Replacement engine coolant pipe and hose assemblies
  • - Engine coolant reservoir replacement assembly
  • - Dual plate supercharger mounting system includes idlers, drive belt and all hardware. Mount features multiple position idler location for a wide range of belt and pulley fits.
  • Discharge components include:
  • - High flow air/air charge cooler. 24" x 13" x 3.5" cooler core.
  • - Mandrel bent 3" and 3.5" aluminum charge tubes for high flow and minimal weight
  • - Stainless steel clamps
  • - Silicone sleeves
  • - 98mm MAF housing configured for "blow-through" use. Integrated air-straightener upstream of the MAF housing.
  • - Vortech Maxflow Race Bypass Valve with filter

  • Installation
  • Installation time is rated at 6-9 hours.

  • INSTALLATION MANUAL

  • CARB Compliance
  • These systems are NOT CARB legal, and are legal in California only for racing vehicles which may never be used upon a highway (off-road use only). Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S Law regarding motor vehicle emissions.

  • Optional Parts/Accessories
    8-Rib Drive Upgrade
  • 4FQ116-003 - The 8-Rib pulley upgrade is a must for any high-output tuner kit. The extra two ribs allow 33% more drive power to be transmitted to the supercharger and also reduce slip that reduces power and shortens belt life.

  • Supercharger Pulleys
  • 6-Rib pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
  • 8-Rib pulleys: 2A038-348, 2A038-333, 2A038-312, 2A038-295

  • Fuel Pump Booster
  • 5A102-029 - The Maxflow® fuel pump booster increases voltage to the fuel pump for increased flow to the injectors. FPB2 is microprocessor controlled and is preprogrammed for the new 5.0.
  • 5A102-030 - The FPB1 Maxflow® fuel pump booster is like the 2 version but has a fixed voltage increase without programmability. Can be operated with a pressure switch.
  • Product Details

    The ONLY 50-State Smog Legal Centrifugal Supercharger System on the market! CARB EO # Pending.

    COMPLETE SYSTEM

    630HP - The complete system will boost your stock 5.0 GT to 630HP and 483 LB/FT Torque with 7.5 to 8.5 PSI from the NOVI 2200SL Supercharger at factory redline using CA 91 Octane fuel.



    TUNER KIT

    1,000HP - The same NOVI 2200 Supercharger included with the complete system is capable of supporting additional HP on modified vehicles.
