Paxton 2011-2014 Ford 5.0L Mustang GT Tuner Kits

Paxton 2011-2014 Ford 5.0L Mustang GT Tuner Kits

1001863SL-1

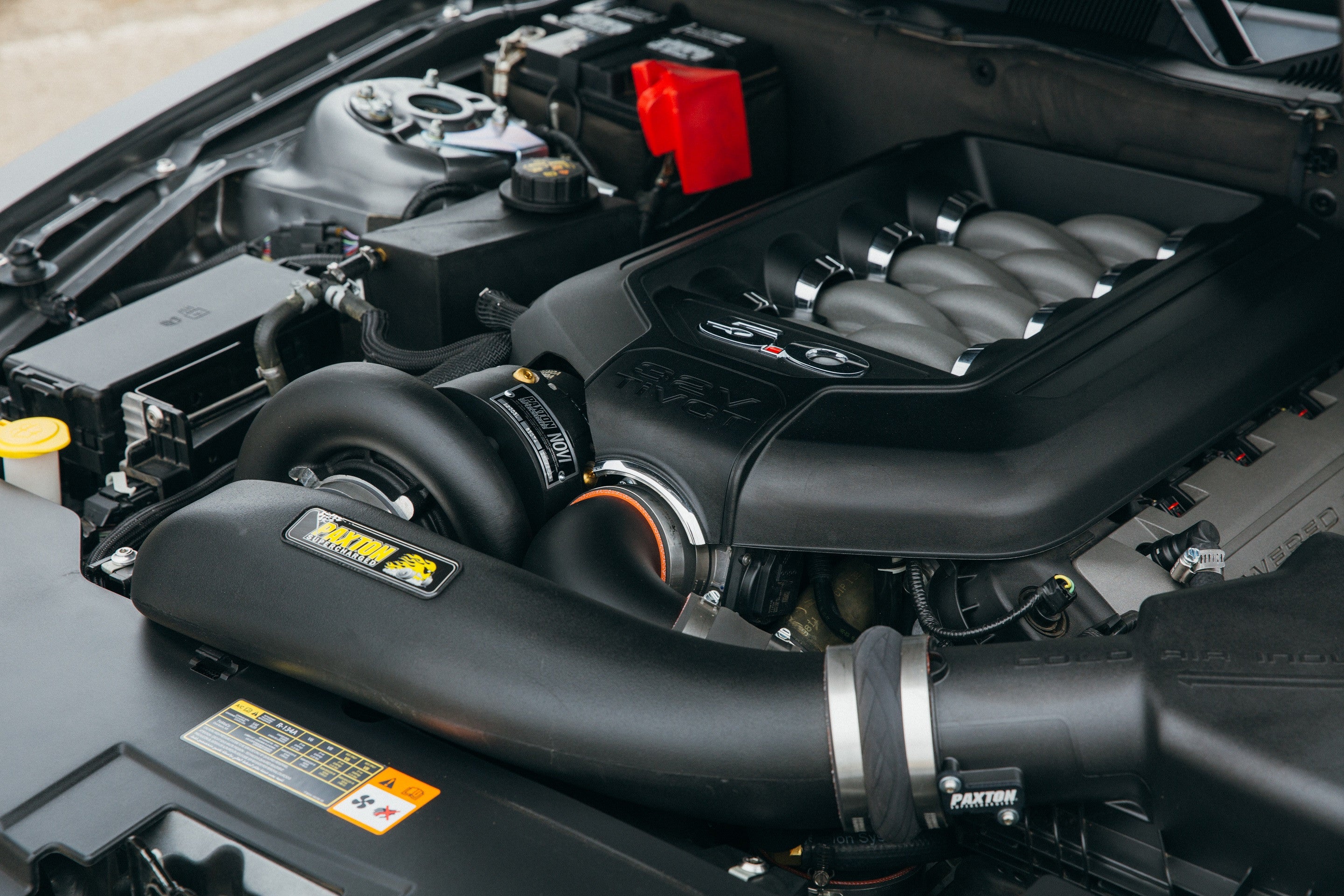

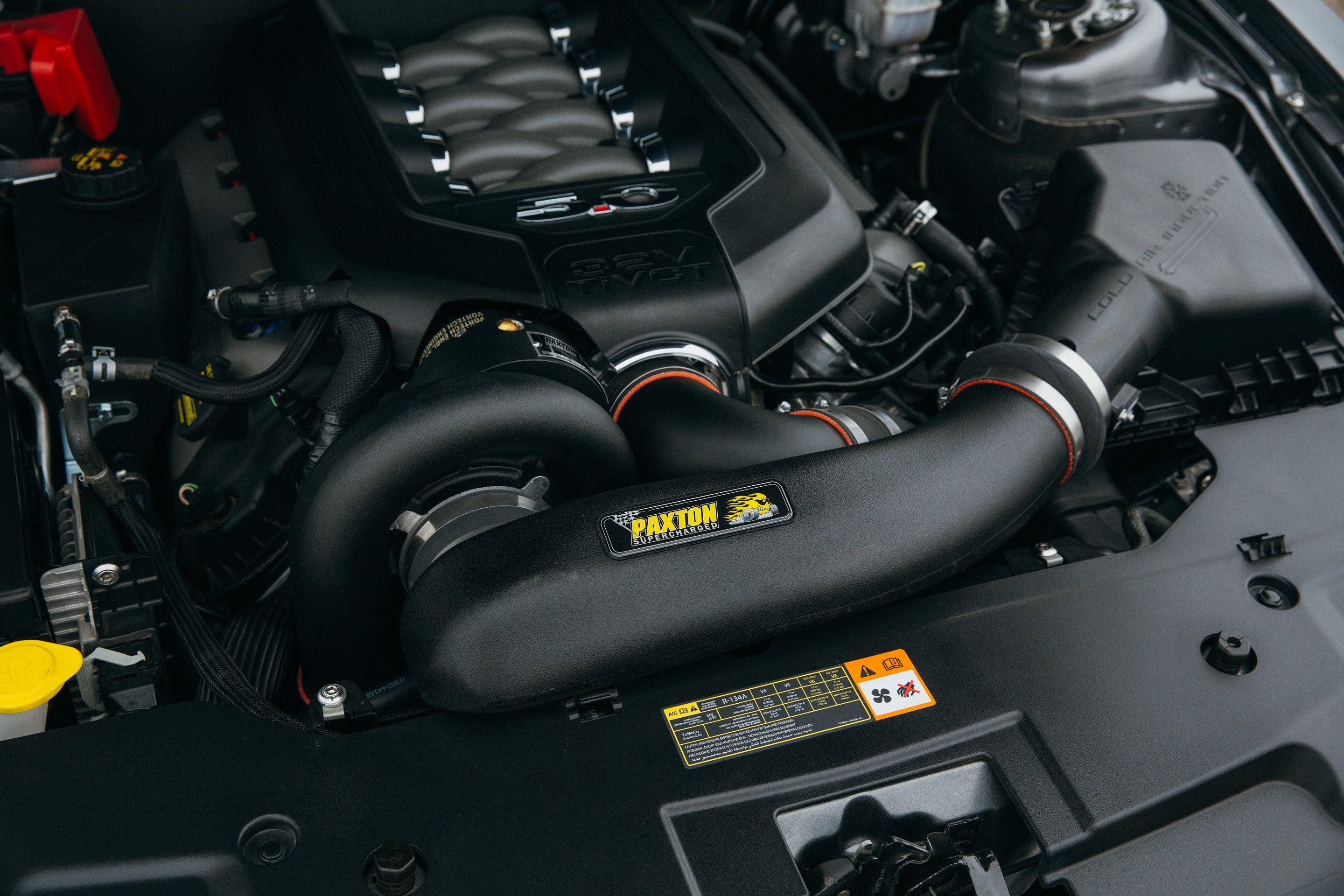

  • The 2011-2014 Ford 5.0L Mustang GT systems utilize Paxton's NOVI 2200 supercharger. Continued development in Paxton's Lab resulted in the NOVI 2200, with its new patented oil control system and state of the art centrifugal compressor stage this NOVI 2200 literally blows away the competition. Industry leading 76% adiabatic efficiency [SAE J1723 standard] means less heat is being generated, drive power is reduced and more net power is produced. Less heat also means better durability. Also, Paxton's supercharger systems weigh less than half of the low-tech competing brands.

  • Note: Supercharger System will not clear fog lights on California Special models. Fog lights will need to be removed or custom discharge tubing will need to be obtained.

    • Superior Technology
  • Centrifugal superchargers easily make more pressure and flow than a roots type blower and are much more efficient. Read our Roots vs Centrifugal comparison to see the numbers.

  • Vortech supercharger systems are a great value. Dollar for dollar, Paxton systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage often increases rather than decreases.

    • Supercharger Kit Finishes
  • Multiple kit finishes available. For that fully integrated look, 5.0 Mustang systems are available in factory matching black finish. Satin and Polished units are also available.

    • Included Components and Features
  • - NOVI 2200SL or 2200 H/D compressor with 3.60" drive pulley
  • - Manifold boost pressure: 7.5-8.5 psig @ redline on stock engine
  • Air inlet assembly includes:
  • - High-flow roto-molded ducting. Mates to OEM airbox and some aftermarket "CAI" MAF/inlet assemblies
  • - OEM replacement K&N panel filter
  • - Silicone sleeves and reducers
  • - Stainless steel clamps
  • - PCV and breather hose provisions
  • - Replacement engine coolant pipe and hose assemblies
  • - Engine coolant reservoir replacement assembly
  • - Dual plate supercharger mounting system includes idlers, drive belt and all hardware. Mount features multiple position idler location for a wide range of belt and pulley fits.
  • Discharge components include:
  • - High flow air/air charge cooler. 24" x 13" x 3.5" cooler core.
  • - Mandrel bent 3" aluminum charge tubes for high flow and minimal weight
  • - Stainless steel clamps
  • - Silicone sleeves
  • - 98mm MAF housing configured for "blow-through" use. Integrated air-straightener upstream of the MAF housing.
  • - Vortech Maxflow Race Bypass Valve with filter

    • Installation
  • Installation time is rated at 6-9 hours.

  • INSTALLATION MANUAL

    • CARB Compliance
  • Tuner Kits are NOT CARB legal, and are legal in California only for racing vehicles which may never be used, or registered or licensed for use, upon a highway (off-road use only). The manufacture, sale, offer for sale, or installation of this product may also be illegal under the federal clean air act (42 U.S.C. § 7522(A)(3)).

    • Optional Parts/Accessories

    Competition Air Inlet Assembly with Filter
  • 4FQ112-060 - Features large, high-flow duct with oversized K&N filter element and sealed air box. Provides minimum restriction for high-flow competition use. Adds additional 20-40HP.

    • Carbon Fiber Air Inlet Duct
  • 4FQ012-013 - Stylish upgrade for your Vortech Coyote Supercharging System. Featuring direct replacement, smooth carbon fiber air inlet duct for enhanced underhood appearance.

    • 8-Rib Drive Upgrade
  • 4FQ116-001 - 8-Rib Drive Upgrade, 2011-2012 Ford 5.0L Mustang (4-Bolt Water Pump Pulley)
  • 4FQ116-003 - 8-Rib Drive Upgrade, 2013-2017 Ford 5.0L Mustang (3-Bolt Water Pump Pulley)
  • - The 8-Rib pulley upgrade is a must for any high-output tuner kit. The extra two ribs allow 33% more drive power to be transmitted to the supercharger and also reduce slip that reduces power and shortens belt life.

    • Supercharger pulleys
  • 6-Rib pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
  • 8-Rib pulleys: 2A038-348, 2A038-333, 2A038-312, 2A038-295

    • Fuel Pump Booster
  • 5A102-037 - The Maxflow® Plug-and-Play Voltage Booster Assembly increases voltage to the fuel pump for increased flow to the injectors. Included harness plugs directly into factory connector for simple, "plug-and-play" installation.

    • Warranty Information:
  • 3-Year Supercharger Limited Warranty - Available with NOVI SL superchargers (if purchased as part of a complete street-legal system) for an additional $50.00.
  • Note: Tuner kits are only eligible for a 1-Year Warranty.
    •

    $6,255.99
    Head Unit
    Finish
    Charge Cooler
    -
    +
    $6,255.99
    Add to wishlist

    Product Summary

    TUNER KITS

    For higher-horsepower, custom-tuned installations we recommend a tuner kit, which does not include a fuel enrichment components or ECU programmer. This requires you or your installer to provide custom calibration and the required fuel components. The NOVI 2200SL supercharger included with the tuner kit is capable of up to 900+HP on modified vehicles. Tuner kits are also available as the Competition Tuner Kit, with the 1,000 HP capable NOVI 2200 H/D supercharger for high-performance racing vehicles. Call Paxton or your dealer for more information.

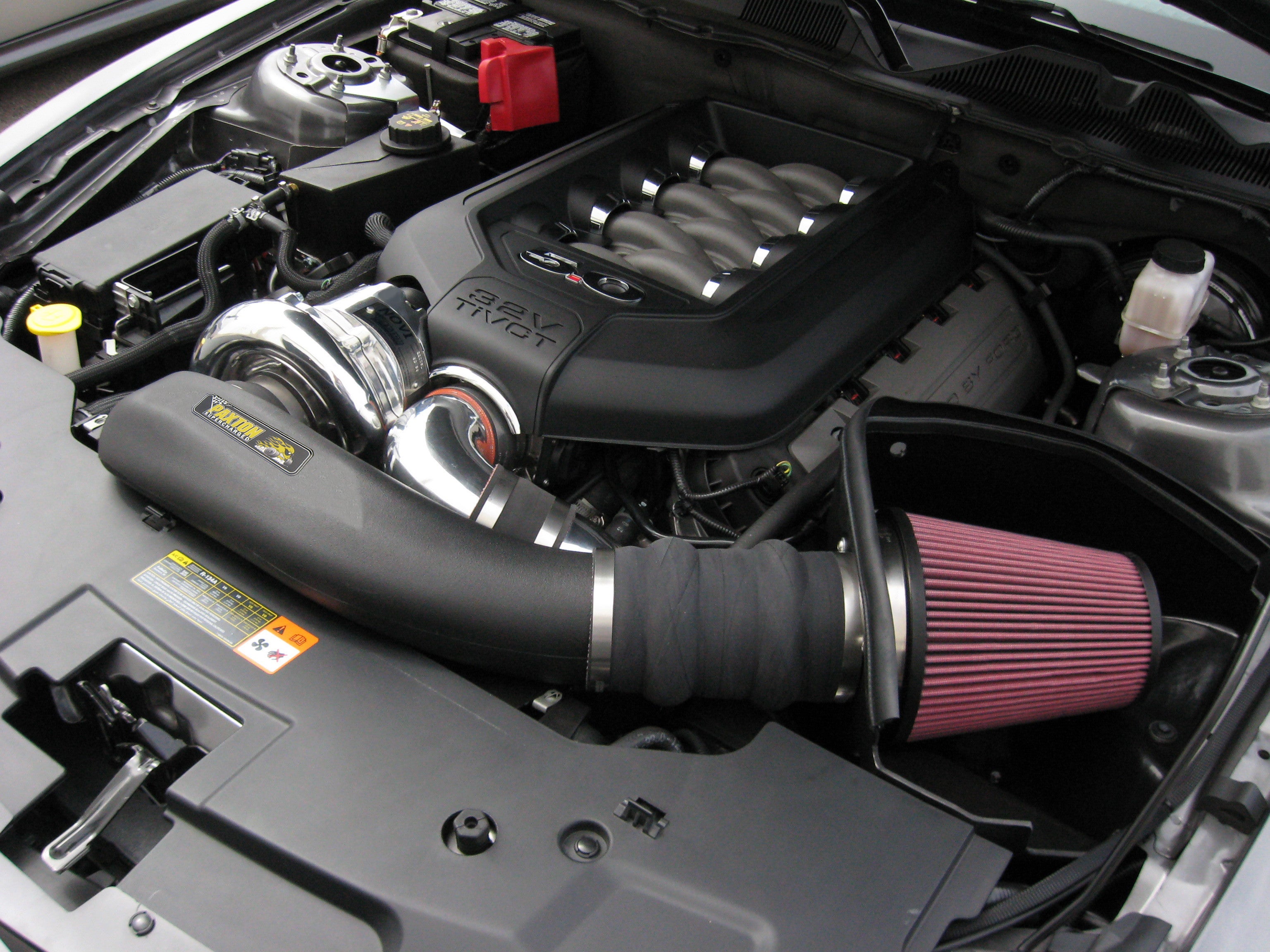

    *NOTE - Some photos show system with optional Competition Air Inlet Assembly (Sold Separately).
