Paxton 2010 Ford 4.6 3V Mustang GT Supercharger Systems

1001862SL

$6,191.99
Charge Cooler
Head Unit
Finish
-
+
$6,191.99
Add to wishlist

Availability

2010:

Complete systems and tuner kits are available. The High Output complete systems boost stock 2010 vehicles to 498HP.

Complete Systems - Included Components and Features

  • Flywheel horsepower/torque:
  • Stock (factory rating): 315/325
  • Supercharged: 498/434
  • NOVI 2200 compressor with 3.40" drive pulley (High Output)
  • Manifold boost pressure: 10 psi (High Output) @ redline on stock engine
  • High contact ratio, precision helical gear-driven supercharger provides quiet operation and unmatched reliability
  • Technologically advanced, high-efficiency computer-designed impeller and housing design developed in Paxton's supercharger test cell for optimum performance
  • Supplied Diablosport In-Tune programmer re-flashes the ECM with a safe, custom Paxton calibration for 91-octane fuel. Other benefits include:
    • Live data monitoring and diagnostics
    • Logging capability
    • Reading and resetting DTC's
  • Fuel system upgrade includes:
    • High flow replacement fuel injectors
    • 255 lph "in-tank" fuel pump with harness. Used in conjunction with the OEM in-tank pump to provide a dual-pump configuration.
  • Air inlet assembly includes:
    • High-flow quality roto-molded ducts
    • Silicone sleeves with stainless steel clamps
    • 98 mm MAF meter housing and filter with heat shield
    • Diablosport MAF interface adapter for extended meter range
  • Includes replacement engine coolant pipes and hose assemblies
  • Billet aluminum supercharger mounting bracket assembly includes idlers, drive belt and all mounting hardware

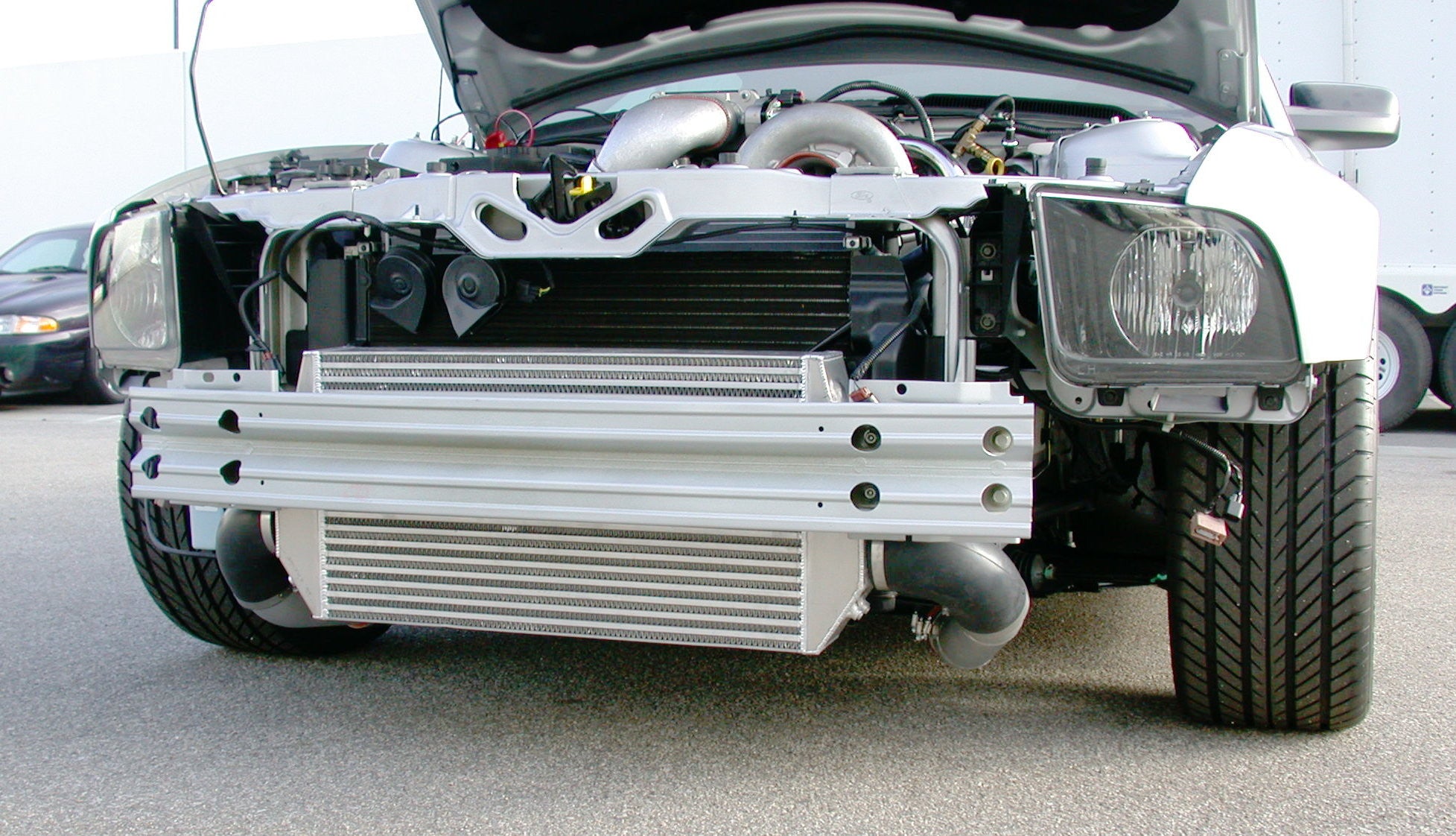

  • Integrated high capacity air/air charge cooler configuration allows for additional horsepower gains and features maintenance-free design (High output systems)
  • Inlet and discharge duct connections utilize heat resistant silicon sleeves and premium quality stainless steel clamps

Centrifugal superchargers easily make more pressure and flow than a roots type blower and are much more efficient. Read our Roots vs Centrifugal comparison to see the numbers.

Installation

Installation time is rated at approximately 12-14 hours (High Output).

INSTALLATION MANUAL

Hardware kit: 4FU100-001 includes spare/replacement bolts and other hardware for supercharger mounting.

Tuner Kits and Supercharger Options

Tuner kits are the same as complete systems except without the fuel system upgrades or ECM reprogramming. This allows for custom tuning and fuel modifications that the custom tuner or racer may prefer. Paxton has supercharger options for various types of racing or boost level. For continued use, such as road racing, the engine oil-fed (non-SL) series superchargers share the engine's oiling system. This approach is more suitable for continued boost conditions and allows for the addition of an oil cooler or filter. Call the Paxton Tech Line for complete information on the many upgrades and options available.

CARB Compliance

Complete systems are smog legal for some 4.6L Mustangs per California Air Resources Board (CARB).

Not Smog Legal for Some 2005 Models

These systems are not smog legal in California for 2005 model year vehicles built on or before April 30, 2005. For these particular vehicles, these systems are legal in California only for racing vehicles which may never be used upon a highway (off-road use only).

CARB Executive Order # D-213-27

2007 Systems No Longer Smog Legal

2007 systems produced after June 12, 2008 are not exempt. These systems are legal in California only for racing vehicles which may never be used upon a highway (off-road use only).

2008-2010 Systems Not Smog Legal in California

2008-2010 systems have not yet been granted an exemption by the California Air Resources Board. For these particular model years, these systems are currently legal in California only for racing vehicles which may never be used upon a highway (off-road use only).



Warranty Information:

1-Year Supercharger Limited Warranty

Included with all superchargers except race/heavy-duty models. More information (PDF).

3-Year Supercharger Limited Warranty

Available with SL superchargers (if purchased as part of a complete street-legal system) for an additional $50.00. Note: Tuner kits are only eligible for a 1-Year Warranty. More information (PDF).
