2015-2019 6.4L Dodge Charger Supercharger Systems

4CM218-030L



Complete System
  • Complete systems are available for 2015-2019 model year vehicles.

  • 730HP Complete Systems, 50-State Smog Legal under CARB E.O. # D-213-39

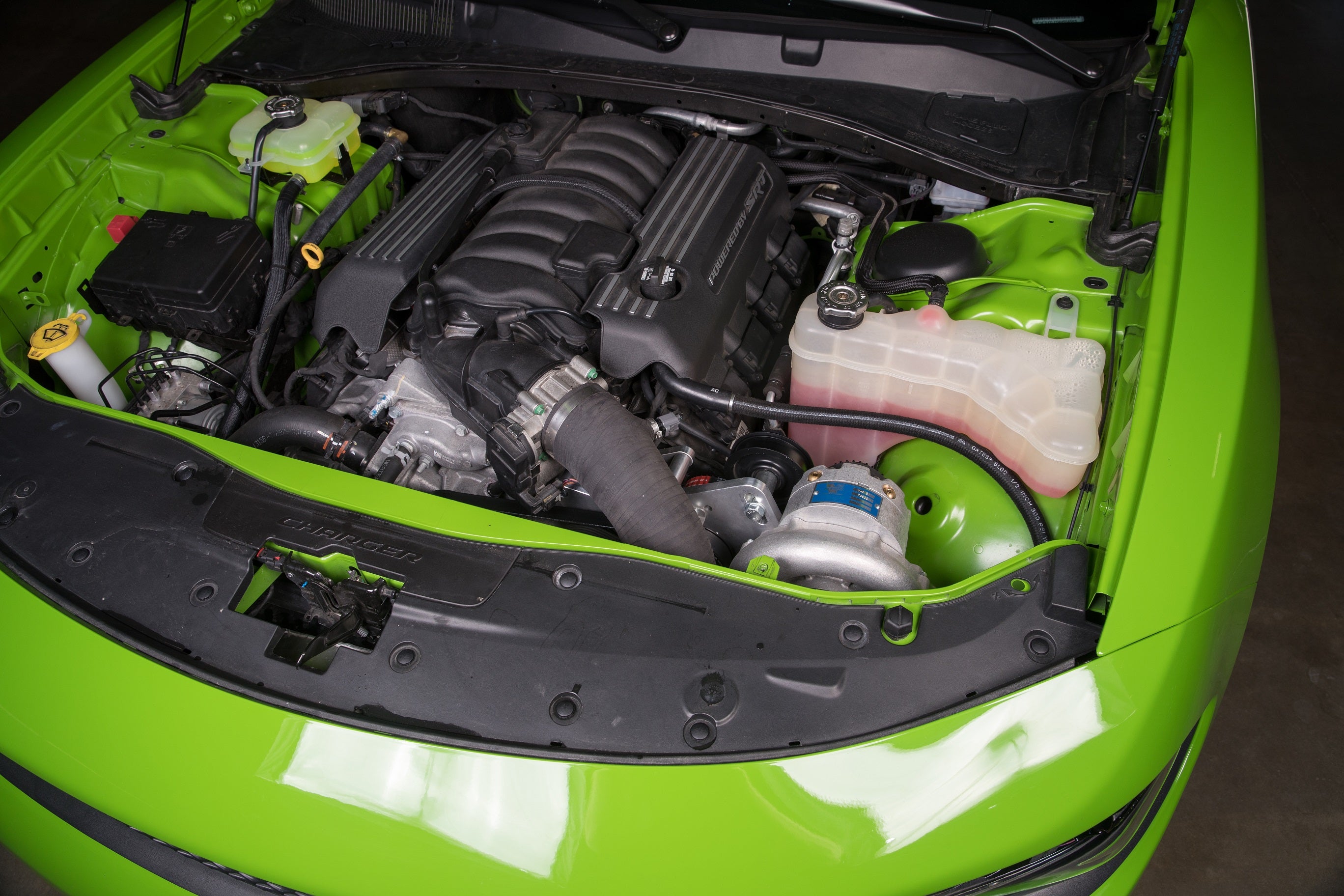

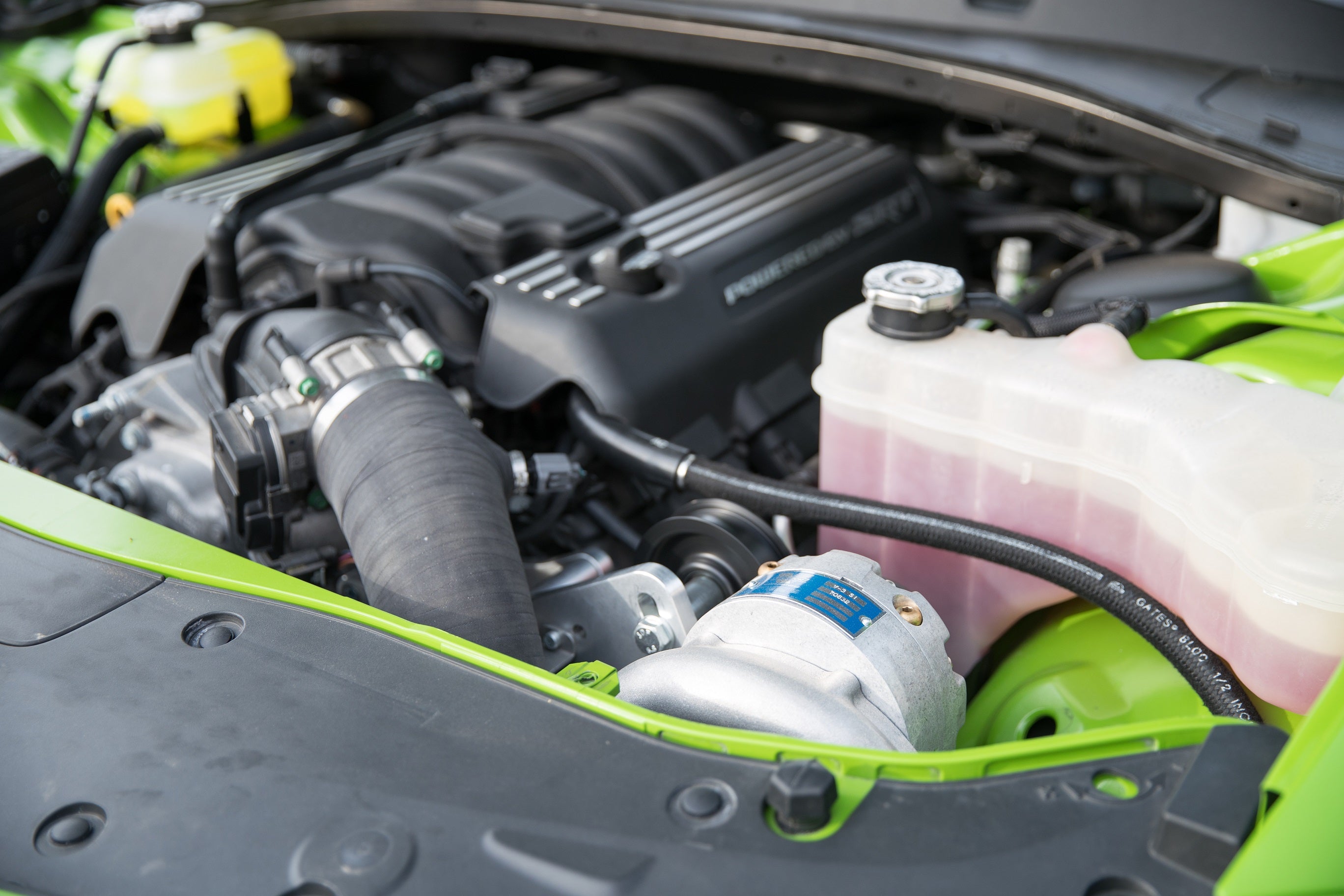

  • Complete, fully calibrated supercharging systems are available for the 2015-2019 6.4L Charger, featuring the V-3 Si-Trim centrifugal supercharger with air-to-water charge cooler.

  • The complete system will boost your stock 2015-2019 Dodge Charger to 730 HP and 645 lb/ft torque with 7 PSI from the V-3 supercharger at the factory redline.

  • The 6.4L Charger Systems utilize Vortech's V-3 Si-Trim supercharger. Continued development in Vortech's Lab resulted in the V-3 Si. The "i" stands for improved and with its new patented oil control system and state of the art centrifugal compressor stage this V-3 literally blows away the competition. Industry leading 78% adiabatic efficiency [SAE J1723 standard] means less heat is being generated, drive power is reduced and more net power is produced. Less heat also means better durability. Also, Vortech's supercharger systems weigh less than half of the low-tech competing brands.

  • Superior Technology
  • Centrifugal superchargers easily make more pressure and flow than a roots type blower and are much more efficient. Read our Roots vs Centrifugal comparison to see the numbers.

  • Vortech supercharger systems are a great value. Dollar for dollar, Vortech systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage often increases rather than decreases.

  • Additional Kit Options
  • For higher-horsepower, custom-tuned installations on your 2015-2019 6.4L Dodge Charger, we recommend a tuner kit, which does not include fuel injectors, fuel pump voltage booster, MAP sensor or ECU programmer. This requires you or your installer to provide custom calibration and the required fuel components. The V-3 Si supercharger included with the tuner kit is capable of up to 775 HP, and the included air-to-water charge cooler is capable of supporting 1,000+ HP on modified vehicles. For higher output or high-performance racing vehicles, please contact Vortech for more information on what other options may be available.

  • Available Supercharger Finishes
  • Multiple kit finishes available. For that fully integrated look, 6.4L Charger systems are available in factory matching black finish. Satin and Polished units are also available.

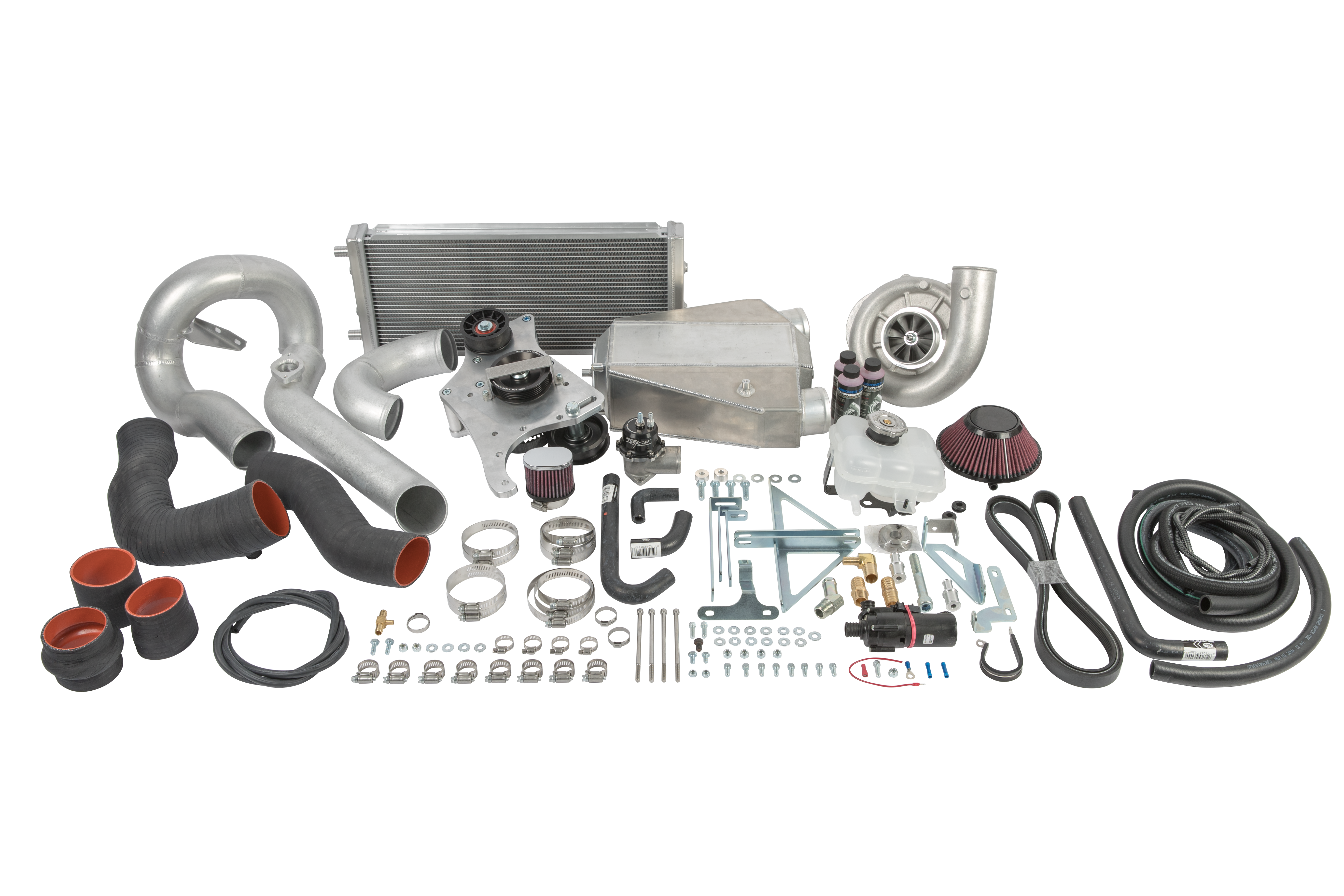

  • Included Components and Features
  • - V-3 Si-Trim CCW Rotation Supercharger with 30 Tooth S/C drive pulley
  • - Manifold boost pressure: 7.0 psig @ redline on stock engine
  • Mounting Plate Assembly Includes:
  • - Billet aluminum mounting plate
  • - Mount features extended serpentine drive with secondary cog drive
  • - Drive pulley combination 3.60" Serpentine pulley, 32 tooth secondary drive pulley, 30 tooth Supercharger pulley
  • - All necessary idler pulleys, drive belts, and hardware
  • Air-to-Water Charge Cooler design increases performance and reliability of supercharger system, and includes:
  • - Welded charge air cooler core capable of supporting over 1,000 HP
  • - Aluminum discharge ducting for high flow and minimal weight
  • - OE Hellcat water reservoir storage tank with hoses, clamps and plumbing
  • - Compact water circulation pump for closed loop cooling
  • - Aluminum heat exchanger (22.6" x 9.5" x 2.5")
  • - Silicone couplers
  • - Stainless steel hose clamps
  • Maxflow Race Bypass Valve with filter
  • Air Inlet includes reusable, high flow air cleaner

  • Installation
  • Installation time is rated at 10-14 hours.

  • INSTALLATION MANUAL

  • CARB Compliance
  • Complete systems are smog legal per California Air Resources Board (CARB). CARB Executive Order # D-213-39

  • Optional Parts/Accessories
    Supercharger/Secondary Drive Pulleys
  • Jackshaft Cog Pulleys: 4GR032-034
  • Supercharger Pulleys: 4GR033-028

  • Race Discharge Ducting Upgrade
  • 4CM112-060 - Discharge Duct Upgrade with BV57 Bypass Valve


  • $8,197.99
    Head Unit
    Finish
    Charge Cooler
    -
    +
    $8,197.99
    Add to wishlist

    Product Summary

    SAFE, SMOOTH, AND 100% LEGAL HORSEPOWER! CARB EO # D-213-39

    THE VORTECH DIFFERENCE - Vortech Superchargers has always put reliability and durability at the forefront of our supercharger system designs. The automotive aftermarket understands how difficult it is to properly calibrate a supercharged HEMI. Customers have complained about how bad “other kits” run and have even seen engine damage due to improper calibration. This is not the case with a complete Vortech Supercharger System. We have spent countless hours on calibration to insure your HEMI has factory like drivability. We understand the difficulties and barriers that are involved in properly supercharging a HEMI and we have conquered every one of them. There is literally no comparison to a Vortech Supercharging System on the market.  It is far and away superior in every sense of the word, and the seamless power delivery and reliability is unparalleled.

    Our “Complete System” is actually complete, unlike with other systems where you have to purchase the kit, and then pay someone else for the tuning. One single price includes everything you need - we even include a box and prepaid label to send the PCM to be unlocked for tuning. Vortech has thought of everything and wants to make sure you have the easiest experience when supercharging your vehicle.

    COMPLETE SYSTEM

    The Gold Standard System for Supercharging your HEMI is here! No longer do you have to settle for those other, inferior kits for your Charger. The Centrifugal Supercharger Systems from Vortech deliver the additional boost and horsepower you are looking for, without heatsoak, without nose-over at high rpms, without cutting or removal of any of the factory safety components, and without compromising drivability. For more than 30 years, we have demonstrated our product leadership with our wide range of super-efficient centrifugal superchargers. From complete, 50-State emissions-legal systems, to the quickest and fastest supercharged modern HEMIs on the planet, Vortech has you covered.

    730HP - The complete system will boost your stock 6.4L Charger to 730HP and 645 LB/FT Torque with 7 PSI from the V-3 Si-Trim Supercharger at factory redline using CA 91 Octane fuel.


  • Complete, fully calibrated supercharging systems are available for the Manual and Automatic Transmission 2015-2019 6.4L Dodge Charger, featuring the V-3 Si-Trim centrifugal supercharger with air-to-water charge cooler.

  • The complete system will boost your stock 2015-2019 6.4L HEMI to 730 HP and 645 lb/ft torque with 7 PSI from the V-3 supercharger at the factory redline.

  • The modern HEMI systems utilize Vortech's V-3 Si supercharger. Continued development in Vortech's Lab resulted in the Si compressor stage. With its new patented oil control system and state of the art centrifugal compressor stage this V-3 literally blows away the competition. Industry leading 78% adiabatic efficiency [SAE J1723 standard] means less heat is being generated, drive power is reduced and more net power is produced. Less heat also means better durability. Also, Vortech's supercharger systems weigh less than half of the low-tech competing brands.
  •

    Vortech supercharger systems are a great value. Dollar for dollar, Vortech systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage often increases rather than decrease.
    Installation
    Installation time for this system is rated at 10-14 hours. - INSTALLATION MANUAL
    CARB Compliance

    Complete systems are 50-State smog legal per California Air Resources Board (CARB). CARB Executive Order # D-213-39



    .
