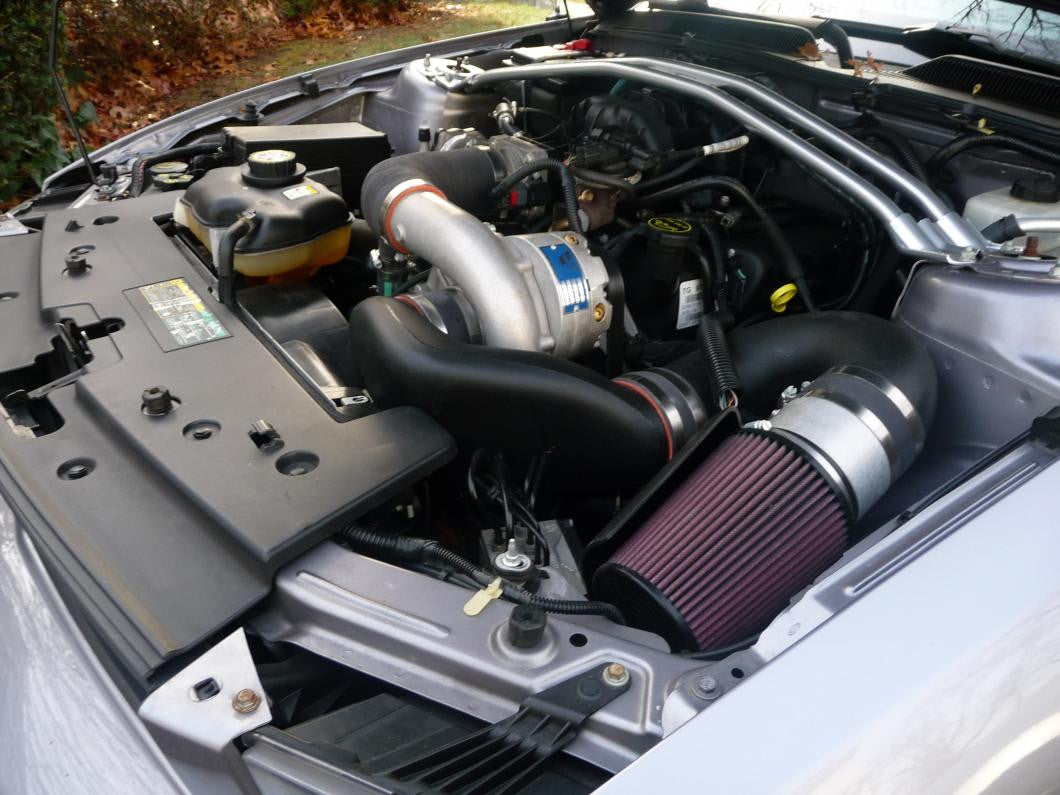

The 2005-2009 Mustang V6 comes from the factory with an impressive 210 horsepower and 254 lb./ft. of torque. This Vortech supercharging system can safely increase this to 290 horsepower and 294 lb./ft. of torque.*

High Output Supercharging Systems

The increased boost level, high output supercharger system, features a fully integrated air to water charge cooler system that allows higher boost level and increased power. This system will increase horsepower from 210 to 330 and will increase torque from 240 lb./ft. to 337 lb./ft.

Quality Features

• Systems are available with the V-3 series self lubricating supercharger. No oil lines necessary.
• Vortech gear driven supercharger with SQ technology provides nearly silent operation and unmatched reliability
• Technologically advanced, high-efficiency impeller and housing design developed in Vortech's supercharger test cell
• Integrated air/water, dual-pass charge cooler configuration allows for additional horsepower gains and features maintenance-free design (High output systems)
• Inlet and discharge duct connections utilize heat resistant silicon sleeves and premium quality stainless steel clamps
• Billet aluminum mounting bracket for custom appearance and rigidity
• High-flow bypass valve provides surge-free compressor operation

INSTALLATION MANUAL

CARB Compliance

Tuner Kits are NOT CARB legal, and are legal in California only for racing vehicles which may never be used upon a highway (off-road use only). Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S Law regarding motor vehicle emissions.

Tuner Kits and Supercharger Options

Tuner kits are the same as complete systems except without any fuel system upgrades or ECM reprogramming. This allows for custom tuning and fuel mods that the tuner or racer may prefer.

Vortech has supercharger options for various types of racing and boost levels. For continued use, such as road racing, the V-2 series superchargers use an engine oil integrated system that can be cooled or filtered, depending on application. Call the Vortech Tech Line for complete information on the many upgrades available.
