2003-2006 Infiniti G35 (Non Rev-Up) Supercharger Systems

4NZ218-030L

$6,480.99
Model Year
Head Unit
Finish
-
+
$6,480.99
Add to wishlist

Complete System
  • Complete, fully calibrated supercharger systems are available for the Infiniti G35, featuring the V-3 SCi internally lubricated, centrifugal supercharger with air-to-air charge cooler.

  • The complete system will boost your stock G35 to 404HP (440 HP on the Rev-Up) with 7.5-8.5 PSI from the V-3 SCi supercharger at the factory redline.

  • The G35 system uses Vortech's V-3 SCi supercharger. Continued development in Vortech's Lab resulted in the V-3 SCi. The "i" stands for improved and with its new patented oil control system and state of the art centrifugal compressor stage this V-3 literally blows away the competition. Industry leading 75% adiabatic efficiency [SAE J1723 standard] means less heat is being generated, reduced drive power and more net power is produced. Less heat also means better durability, easier on the engine than any turbo installation.

  • Vortech supercharger systems are a great value. Dollar for dollar, Vortech systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage usually increases.

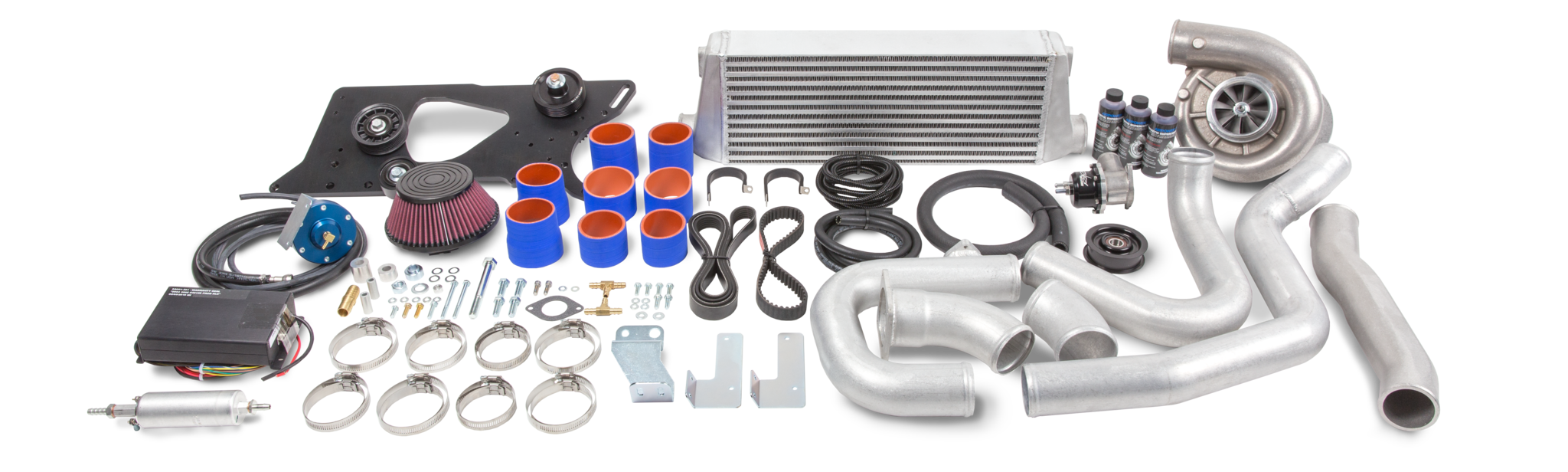

  • Complete System Included Components and Features
  • - Vortech gear driven supercharger with technologically advanced, high-efficiency impeller and housing design developed in Vortech's supercharger test cell
  • - Fuel management upgrade includes a high-flow fuel pump and fuel management unit (FMU)
  • - Stand-alone ignition timing control computer provides for seamless acceleration
  • - Integrated charge cooler configuration allows for higher horsepower gains
  • - Discharge duct connections utilize heat resistant silicon sleeves and premium quality stainless steel clamps
  • - Reusable air filter features a high-flow design
  • - Billet aluminum mounting bracket for "factory-type" appearance and rigidity
  • - Maxflow Racing Bypass Valve provides surge-free compressor operation
  • - Supercharger drive system includes all necessary belts and pulleys

  • Available Supercharger Finishes
  • G35 systems are available in Satin or Polished finish, to fit your preferred system appearance goals.

  • Installation
  • Installation time is rated at 10-12 hours.

  • INSTALLATION MANUAL

  • Tuner Kits and Supercharger Options
  • For higher horsepower installations or pre-modified vehicles, we recommend a Tuner Kit. Tuner kits feature the same quality components as the complete systems, except without the fuel system upgrades or ECM reprogramming. This allows for custom tuning and fuel modifications that the custom tuner or racer may prefer. Vortech has supercharger options for various types of racing or boost levels. For continued competition-level use, such as road racing, the V-2 series superchargers share the engine's oiling system. This approach is more suitable for continued boost conditions and allows for the addition of an oil cooler or filter. Call the Vortech Tech Line for complete information on the many upgrades and options available.

  • Optional & Replacement Parts/Accessories
    Supercharger Pulleys
  • 20mm S/C Pulleys: 34 Tooth, 32 Tooth, 30 Tooth, 28 Tooth
  • 20mm Jackshaft Pulleys: 34 Tooth, 32 Tooth
  • 6-Rib pulleys: 2A036-312, 2A036-287, 2A036-262 (Pulley surfaces may need to be machined for proper clearance on smaller sizes)
  • Hardware & Spacer Kits
  • Hardware Kits: 4NZ100-001 for standard engine; 4NZ100-002 for Rev-Up. These kits include spare/replacement bolts and other hardware for supercharger mounting. Spacers not included.
  • Spacer Kit: Includes mounting spacers for both standard and Rev-Up engine bracket setups. Hardware sold separately.

  • Maxflow Billet Race Blow-Off Valve
  • Maxflow Race BOV - For those looking for a louder "blowoff" sound between shifts, this valve is a direct replacement for the Maxflow Race Bypass Valve included in the 350Z Systems.

  • CARB Compliance
  • Complete systems are smog legal per California Air Resources Board (CARB) Executive Order # D-213-22 (2003-2004) and D-213-27 (2005-2006).

  • Warranty Information
  • 3-Year Supercharger Limited Warranty - Available with V-3 superchargers (if purchased as part of a complete street-legal system) for an additional $50.00.
  • Note: Tuner kits are only eligible for a 1-Year Warranty. More information (PDF).

  • 1-Year Supercharger Limited Warranty - Included with all superchargers except race/heavy-duty models.
  • Product Details

    Bolt on a Vortech V-3 SCi supercharger system and increase your G35's horsepower to 404 and torque to 350 lb./ft. Or on "Rev-Up" models, increase your horsepower to 440 and torque to 352 lb./ft.

    Vortech's G35 Supercharger Systems are available as either a complete, fully calibrated bolt-on system, or as Tuner Kits for custom installations up to 500+ HP. And with Vortech's many upgrade solutions, there is always more power when you are ready.
