Product Summary

Latest Revision Small Block Chevy Supercharger System

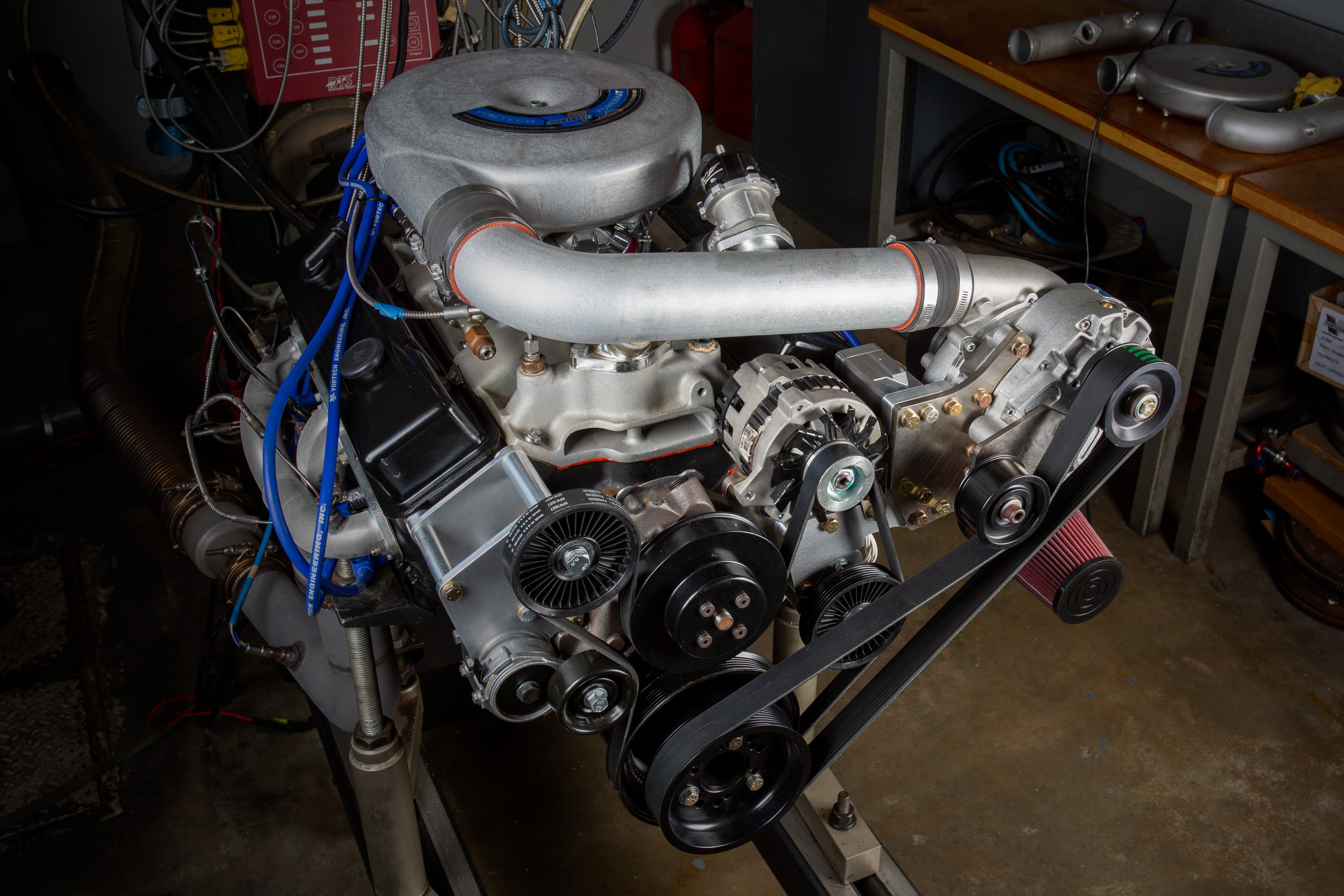

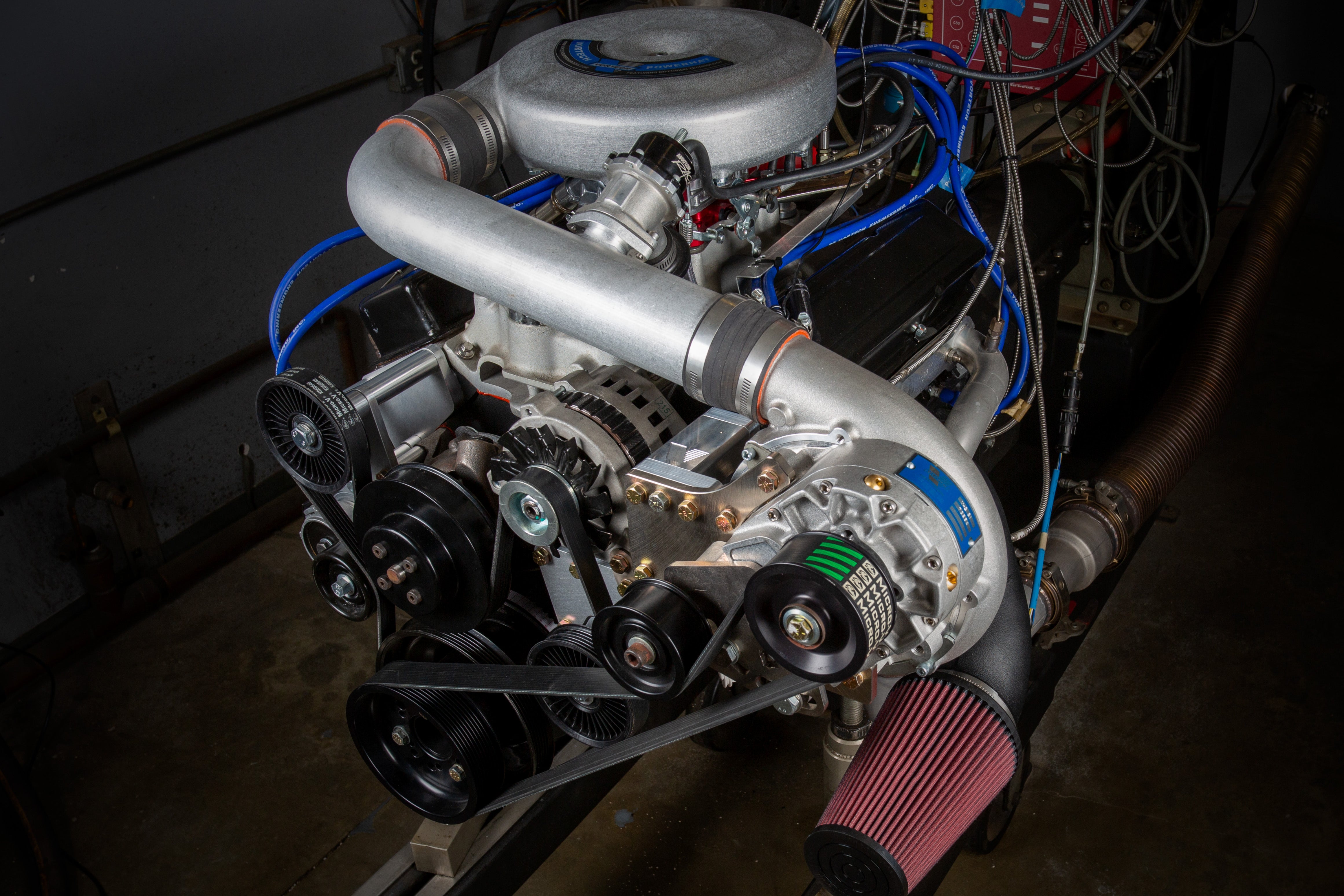

Vortech Superchargers now offers Small Block Chevy owners a way to easily make more power while still retaining Air Conditioning and Power Steering if needed. Utilizing a V-3 Si-Trim compressor capable of up to 775 HP and a 10-rib belt drive assembly, this new more compact Vortech Centrifugal Supercharger system has smallest footprint and is specifically designed for stock to mid-level modified engines. Available for most 283-383c.i. SBC engines with stock or aftermarket heads, the Vortech Superchargers SBC Latest Revision Supercharger kit will change your SBC™s attitude.

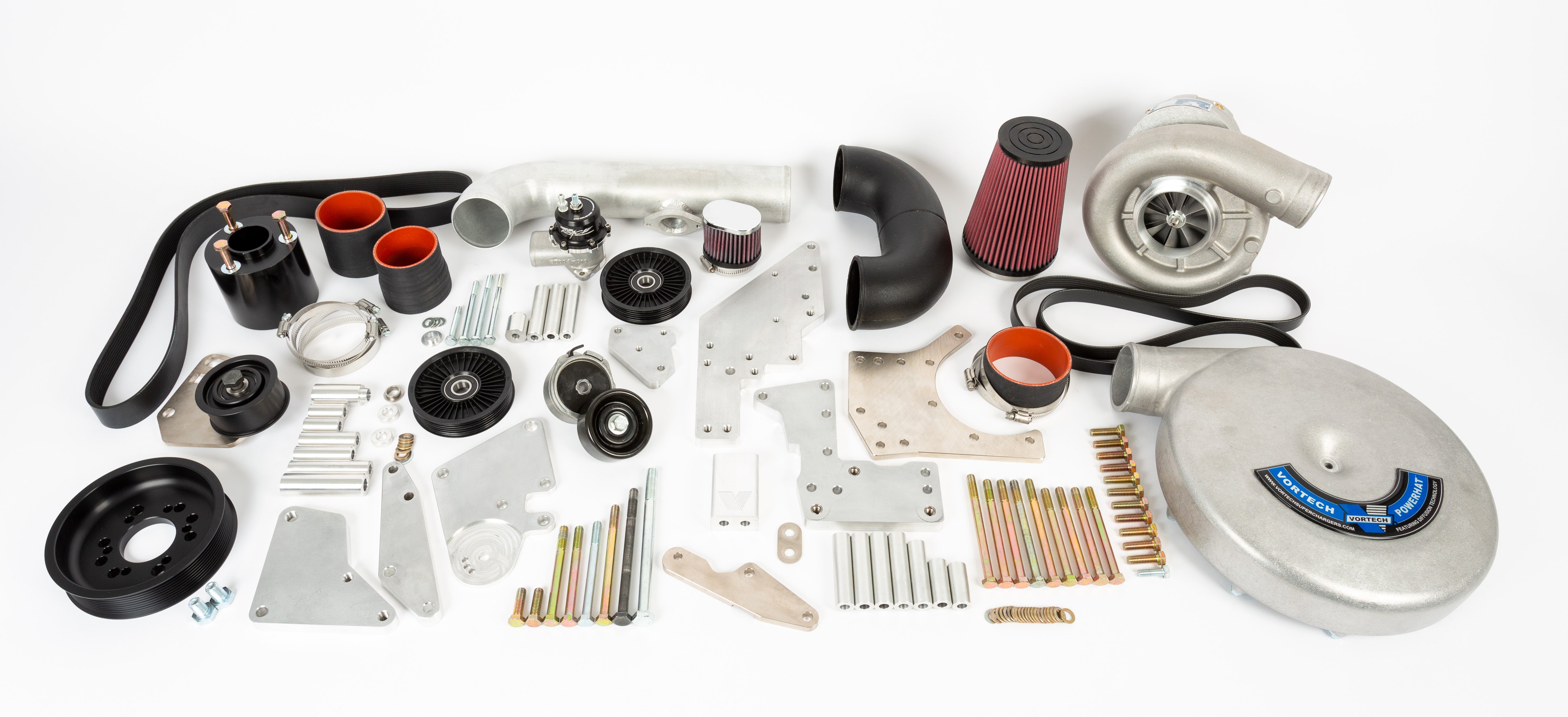

Latest Revision SBC Supercharger System - Features Include:

-V-3 Si compressor using 3.33 SC drive pulley supports up to 775 HP

-Billet Aluminum and Steel mounting plate configuration

-Includes Discharge Tube and Vortech Maxflow race bypass valve

-Air inlet assembly includes Roto-molded intake ducting and 3.5 x 7 cone air filter

-Drive assembly includes Tensioner, 10-rib 6 diameter Crank pulley and 10-rib belt

-Includes all Silicone Sleeves, Reducers, Stainless-steel clamps, and hardware

-Carburetor Hat, base, retainer, and gasket

-Designed for use with BBB Industries Alternator, AC Delco Water Pump & Crank Pulley, Vintage    Air or Sanden A/C Compressor and Tuff Stuff P/S pump

Misc. release notes:

¢ Installation time is rated 4-6 hours

¢ Air conditioning unit, power steering unit, and alternator will have to be purchased separately (not provided by Vortech).

¢ Front Accessories Drive Parts, Verified Fitment ¢ Vintage Air A/C Compressor Part # 046768-MTR or Sanden SD7 7176

¢ AC Delco Crank Pulley Part # 10055879

¢ AC Delco Water Pump Part # 19417097

¢ AC Delco Water Pump Pulley Part # 194118448

¢ BBB Industries Alternator Part # N7861-7 (Alternator plug positioned at 7 o™clock)

¢ AC Delco Alternator Pigtail Part # 88987962

¢ Tuff Stuff P/S Pump Part # 6170AL (GM Type II “ Bottom Pressure Port)

¢ AC Delco Power Steering Pump Pulley Part # 12568997

¢ Must use electric cooling fan. Mechanical fan not design to work with this kit.

¢ Must use Holley/ QFT Q-Series 750 CFM Blow-Thu 4150 type or equivalent Carburetor to work with supplied Carb Hat. Recommended Holley/ QFT Carburetor P/N: Q-750-BAN

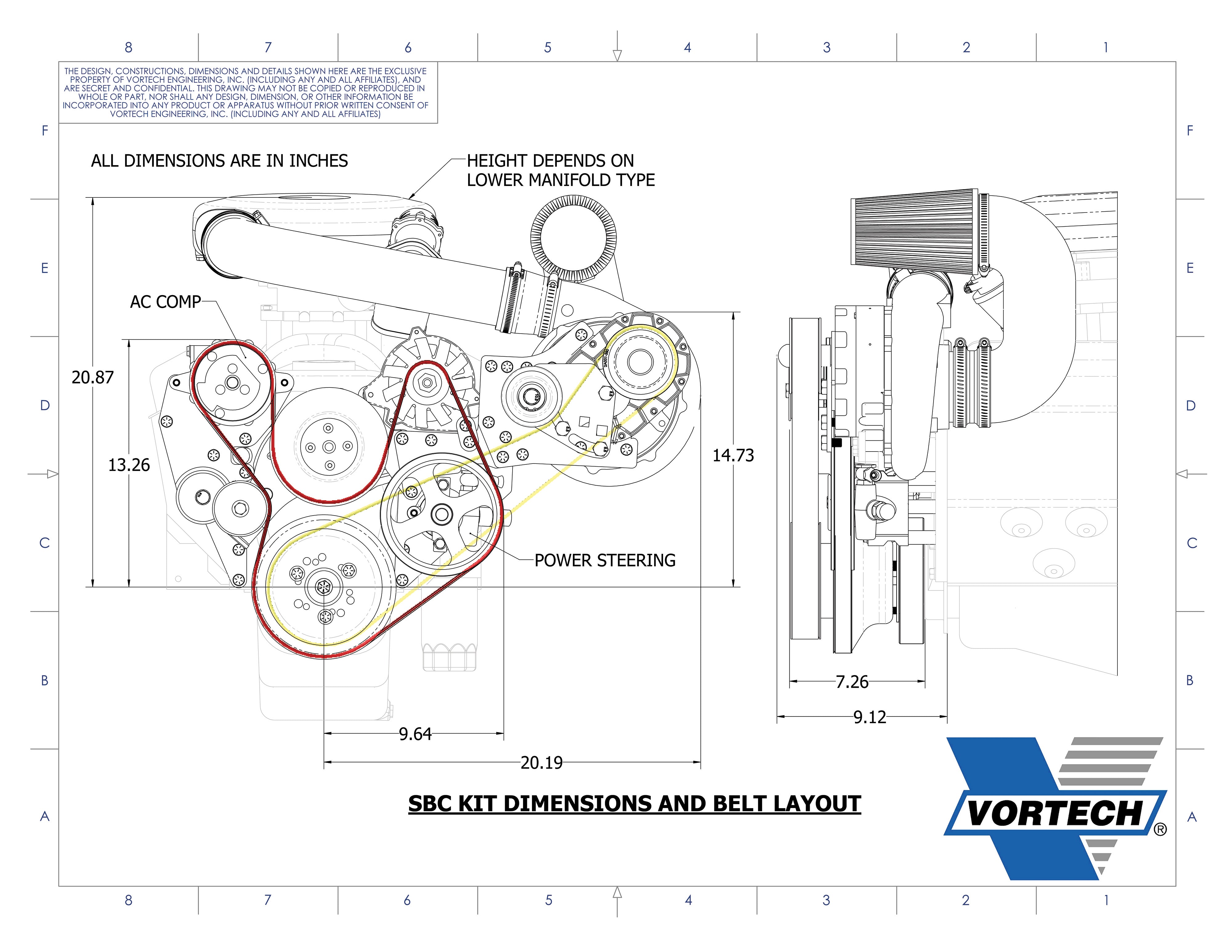

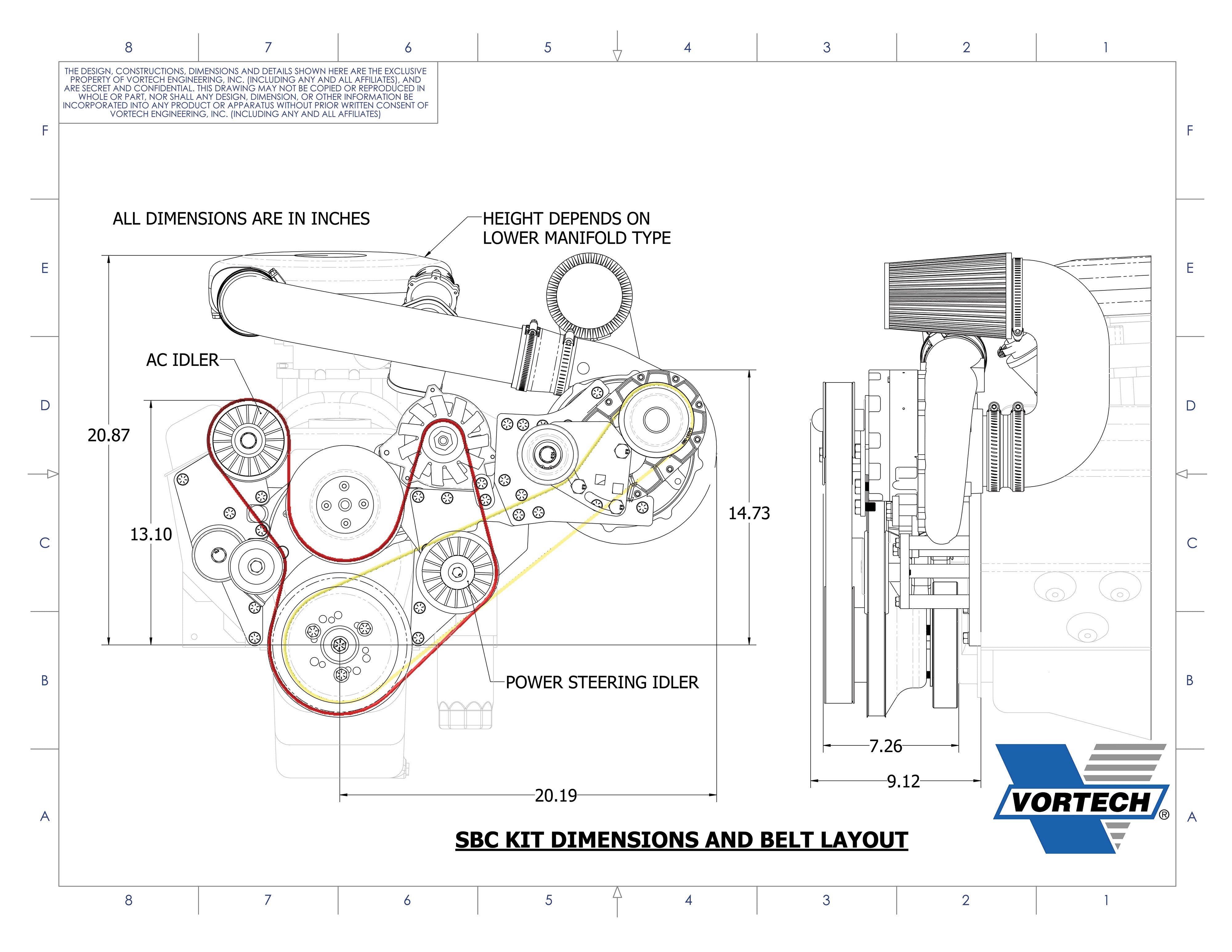

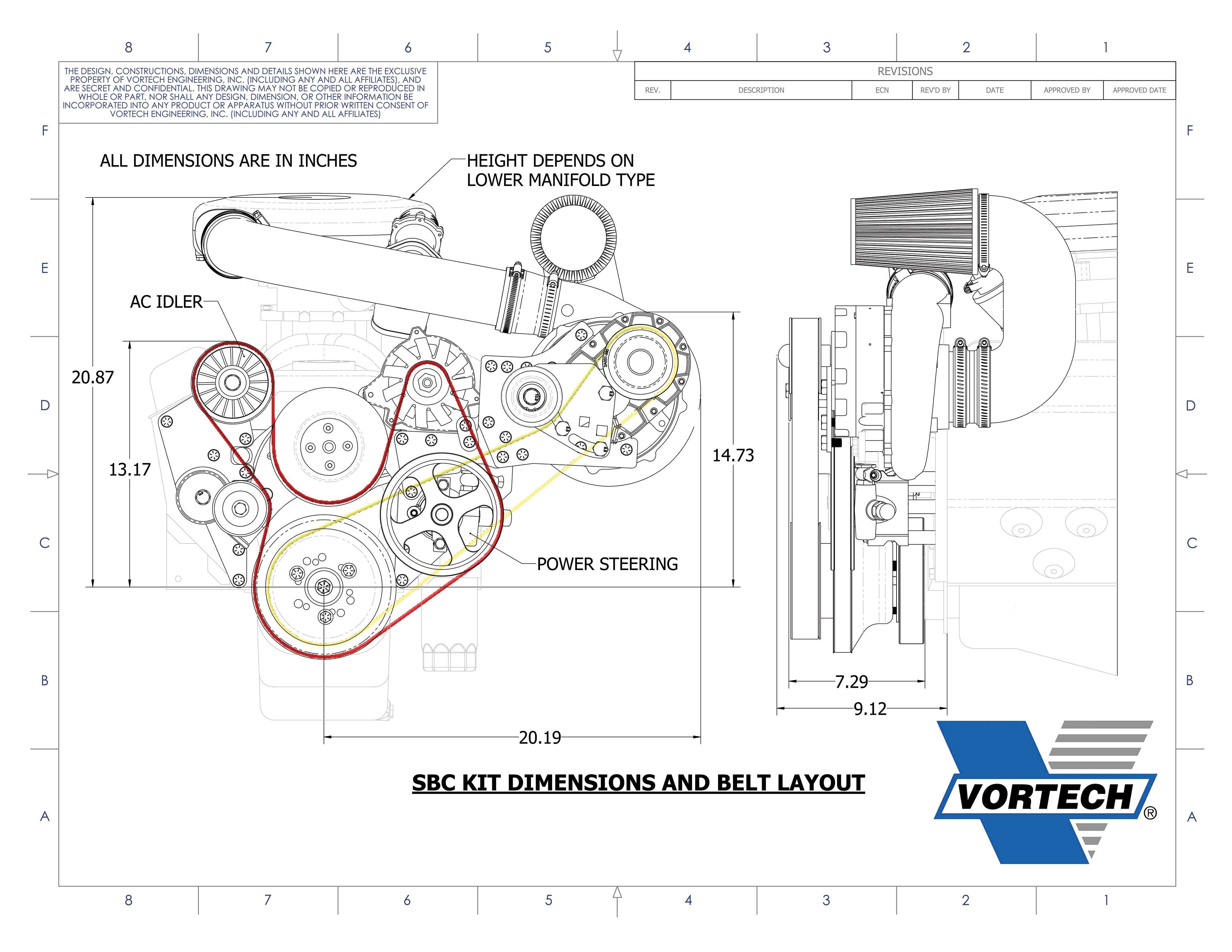

Optional Air Conditioning and Power Steering Configurations (Mounting Only):

4GP111-071 - Air Conditioning- Mounting plates, 6-rib belt, spacers, and hardware

4GP118-050 - Power Steering- 6-rib belt, spacers, and hardware

CARB Compliance

Tuner Kits are NOT CARB legal, and are legal in California only for racing vehicles which may never be used upon a highway (off-road use only). Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S Law regarding motor vehicle emissions.
